ELF-22V035B

Panasonic

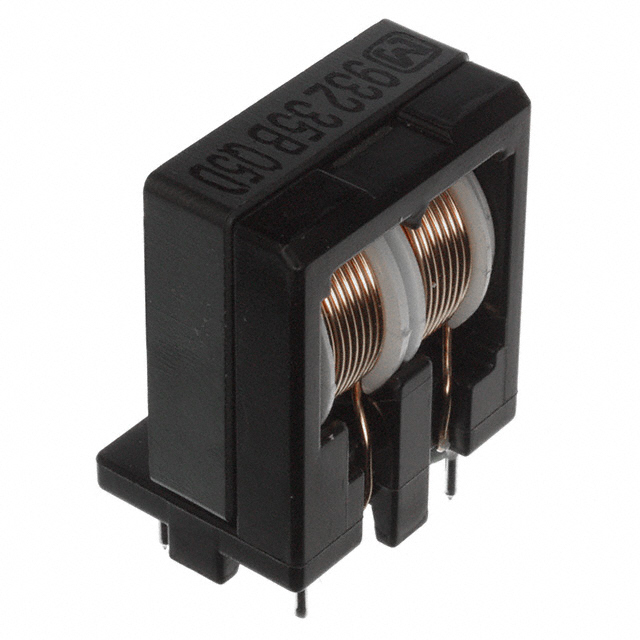

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ELF-22V035B
Manufacturer/Brand:	Panasonic
Product description	COMMON MODE CHOKE 3.5A 2LN TH
Datasheets:	ELF-22V035B.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3344 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3344 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ELF-22V035B

Part Number	ELF-22V035B	Manufacturer	Panasonic
Description	COMMON MODE CHOKE 3.5A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3344 pcs	Data sheet	ELF-22V035B.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	1.260" L x 0.906" W (32.00mm x 23.00mm)	Series	V
Ratings	-	Packaging	Bulk
Package / Case	Vertical, 4 PC Pin	Other Names	ELF22V035B PLK1331
Operating Temperature	-	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	2 (1 Year)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height (Max)	1.535" (39.00mm)
Filter Type	-	Features	-
Detailed Description	2 Line Common Mode Choke Through Hole 3.5A DCR 75 mOhm (Typ)	DC Resistance (DCR) (Max)	75 mOhm (Typ)
Current Rating (Max)	3.5A	Approvals	-
