HEV2AN-P-DC12V

Panasonic

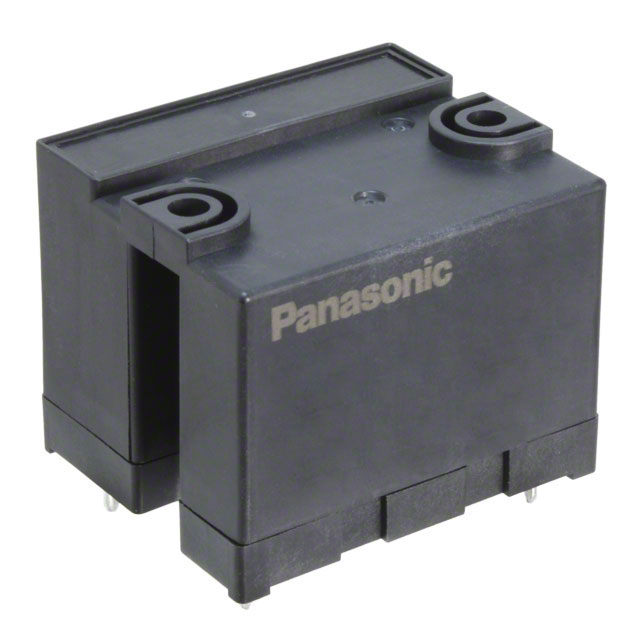

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HEV2AN-P-DC12V
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE DPST 20A 12V
Datasheets:	1.HEV2AN-P-DC12V.pdf 2.HEV2AN-P-DC12V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	976 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 976 pcs

Reference Price (In US Dollars)

1 pcs: $34.88

25 pcs: $31.003

50 pcs: $29.065

100 pcs: $27.128

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$34.88

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HEV2AN-P-DC12V

Part Number	HEV2AN-P-DC12V	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE DPST 20A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	976 pcs	Data sheet	1.HEV2AN-P-DC12V.pdf 2.HEV2AN-P-DC12V.pdf
Turn On Voltage (Max)	8.4 VDC	Turn Off Voltage (Min)	0.6 VDC
Termination Style	PC Pin	Switching Voltage	400VDC - Nom
Series	HE-V	Release Time	10ms
Relay Type	General Purpose	Packaging	Bulk
Other Names	255-4142	Operating Temperature	-40°C ~ 55°C
Operate Time	30ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Detailed Description	General Purpose Relay DPST-NO (2 Form A) 12VDC Coil Through Hole
Contact Rating (Current)	20A	Contact Material	Silver Nickel (AgNi)
Contact Form	DPST-NO (2 Form A)	Coil Voltage	12VDC
Coil Type	Non Latching	Coil Resistance	75 Ohms
Coil Power	1.92 W	Coil Current	160mA
