LKP1AF-9V

Panasonic

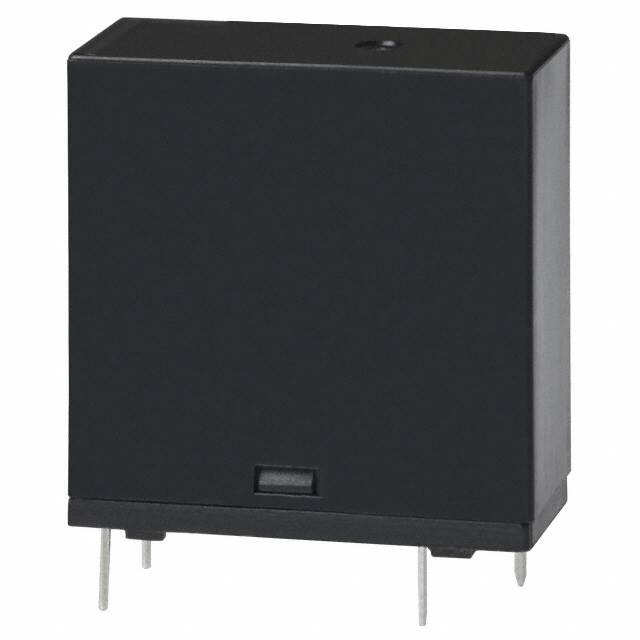

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LKP1AF-9V
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE SPST 10A 9V
Datasheets:	LKP1AF-9V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	65304 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 65304 pcs

Reference Price (In US Dollars)

100 pcs: $0.544

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.544

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LKP1AF-9V

Part Number	LKP1AF-9V	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE SPST 10A 9V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	65304 pcs	Data sheet	LKP1AF-9V.pdf
Turn On Voltage (Max)	6.3 VDC	Turn Off Voltage (Min)	0.9 VDC
Termination Style	PC Pin	Switching Voltage	277VAC, 30VDC - Max
Series	LK-P	Release Time	5ms
Relay Type	General Purpose	Packaging	Bulk
Operating Temperature	-40°C ~ 70°C	Operate Time	15ms
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Sealed - Flux Protection
Detailed Description	General Purpose Relay SPST-NO (1 Form A) 9VDC Coil Through Hole	Contact Rating (Current)	10A
Contact Material	Silver Tin Oxide (AgSnO)	Contact Form	SPST-NO (1 Form A)
Coil Voltage	9VDC	Coil Type	Non Latching
Coil Resistance	153 Ohms	Coil Power	530 mW
Coil Current	58.8mA
