PQ1A-3V

Panasonic

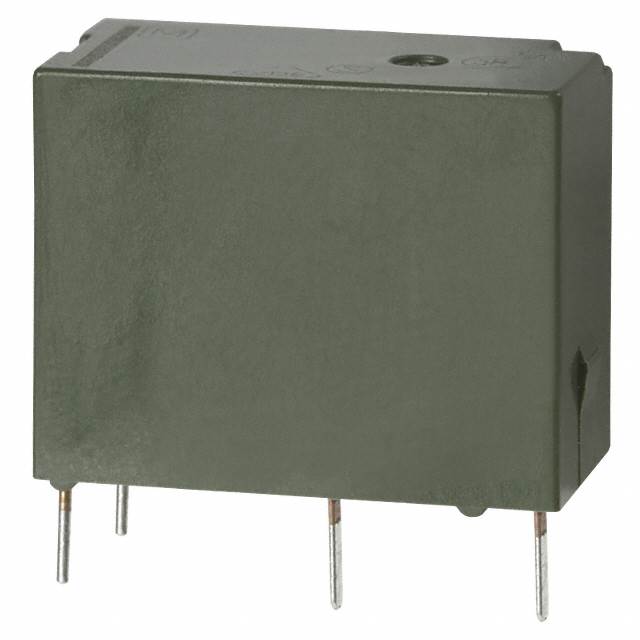

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PQ1A-3V
Manufacturer/Brand:	Panasonic
Product description	RELAY GENERAL PURPOSE SPST 5A 3V
Datasheets:	PQ1A-3V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14516 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 14516 pcs

Reference Price (In US Dollars)

1 pcs: $2.048

10 pcs: $1.92

25 pcs: $1.707

50 pcs: $1.622

100 pcs: $1.536

300 pcs: $1.366

500 pcs: $1.28

1000 pcs: $1.195

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.048

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PQ1A-3V

Part Number	PQ1A-3V	Manufacturer	Panasonic
Description	RELAY GENERAL PURPOSE SPST 5A 3V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14516 pcs	Data sheet	PQ1A-3V.pdf
Turn On Voltage (Max)	2.25 VDC	Turn Off Voltage (Min)	0.15 VDC
Termination Style	PC Pin	Switching Voltage	250VAC, 110VDC - Max
Series	PQ	Release Time	10ms
Relay Type	General Purpose	Packaging	Tube
Other Names	255-3449 PQ1A-3V-ND PQ1A3V	Operating Temperature	-40°C ~ 70°C
Operate Time	20ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Sealed - Fully	Detailed Description	General Purpose Relay SPST-NO (1 Form A) 3VDC Coil Through Hole
Contact Rating (Current)	5A	Contact Material	Silver Nickel (AgNi)
Contact Form	SPST-NO (1 Form A)	Coil Voltage	3VDC
Coil Type	Non Latching	Coil Resistance	45 Ohms
Coil Power	200 mW	Coil Current	66.7mA
