S3EB-24V

Panasonic

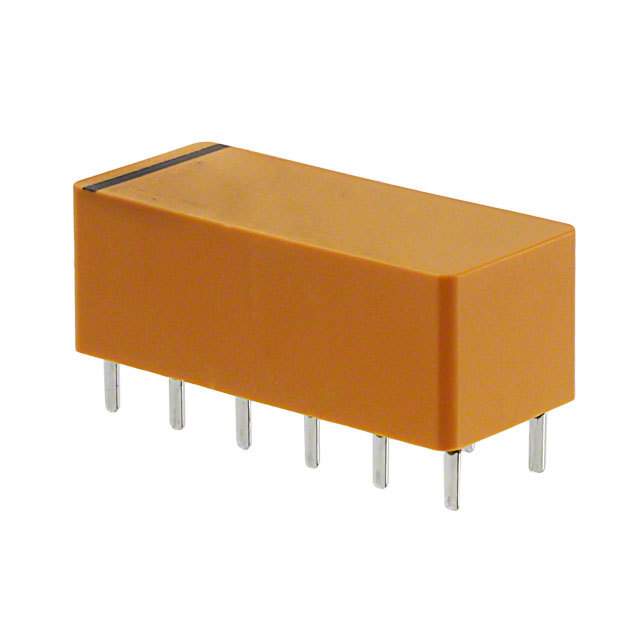

Image may be representation. See specifications for product details.

Product Overview

Part Number:	S3EB-24V
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE 4PST 4A 24V
Datasheets:	S3EB-24V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5752 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5752 pcs

Reference Price (In US Dollars)

1 pcs: $6.259

10 pcs: $5.563

25 pcs: $5.285

50 pcs: $5.007

100 pcs: $4.729

250 pcs: $4.312

500 pcs: $4.033

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$6.259

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of S3EB-24V

Part Number	S3EB-24V	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE 4PST 4A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5752 pcs	Data sheet	S3EB-24V.pdf
Turn On Voltage (Max)	16.8 VDC	Turn Off Voltage (Min)	2.4 VDC
Termination Style	PC Pin	Switching Voltage	250VAC, 48VDC - Max
Series	S	Release Time	10ms
Relay Type	General Purpose	Packaging	Tube
Other Names	255-1888 S3EB-24V-ND S3EB24V	Operating Temperature	-55°C ~ 65°C
Operate Time	15ms	Mounting Type	Through Hole
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Sealed - Amber
Detailed Description	General Purpose Relay 4PST-3NO/1NC (3 Form A, 1 Form B) 24VDC Coil Through Hole	Contact Rating (Current)	4A
Contact Material	Silver Alloy, Cadmium Free	Contact Form	4PST-3NO/1NC (3 Form A, 1 Form B)
Coil Voltage	24VDC	Coil Type	Non Latching
Coil Resistance	2.85 kOhms	Coil Power	202 mW
Coil Current	8.4mA
