SP4-PL2-DC5V

Panasonic

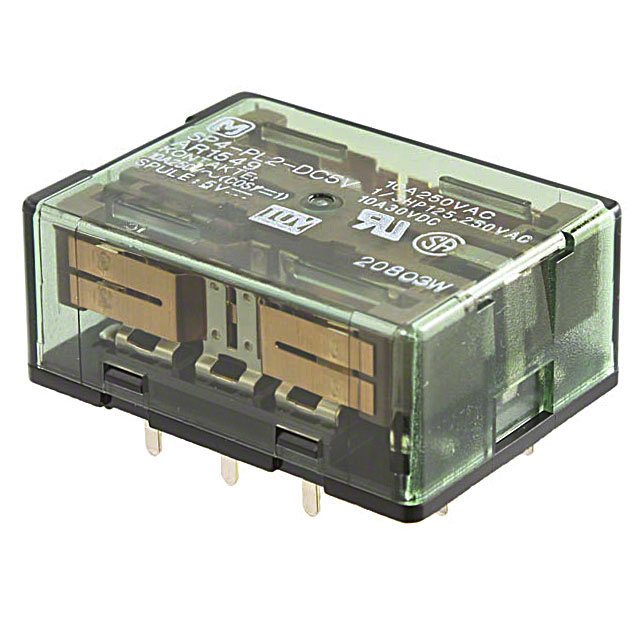

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SP4-PL2-DC5V
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE 4PDT 10A 5V
Datasheets:	SP4-PL2-DC5V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2732 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 2732 pcs

Reference Price (In US Dollars)

1 pcs: $12.103

10 pcs: $11.498

25 pcs: $10.893

50 pcs: $10.288

100 pcs: $9.682

250 pcs: $9.077

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$12.103

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SP4-PL2-DC5V

Part Number	SP4-PL2-DC5V	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE 4PDT 10A 5V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2732 pcs	Data sheet	SP4-PL2-DC5V.pdf
Turn On Voltage (Max)	3.5 VDC	Turn Off Voltage (Min)	-
Termination Style	PC Pin	Switching Voltage	250VAC, 30VDC - Max
Series	SP	Release Time	30ms
Relay Type	General Purpose	Packaging	Bulk
Other Names	255-3459 SP4-PL2-DC5V-ND SP4PL2DC5V	Operating Temperature	-50°C ~ 60°C
Operate Time	30ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Detailed Description	General Purpose Relay 4PDT (4 Form C) 5VDC Coil Through Hole
Contact Rating (Current)	10A	Contact Material	Silver Tin Oxide (AgSnO)
Contact Form	4PDT (4 Form C)	Coil Voltage	5VDC
Coil Type	Latching, Dual Coil	Coil Resistance	83 Ohms
Coil Power	300 mW	Coil Current	60.2mA
