PMNF1-3F-C

Panduit

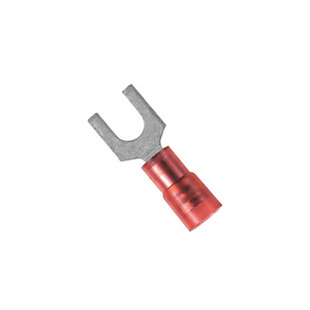

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PMNF1-3F-C
Manufacturer/Brand:	Panduit
Product description	CONN SPADE TERM 18-22AWG M3 RED
Datasheets:	PMNF1-3F-C.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	77552 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 77552 pcs

Reference Price (In US Dollars)

1 pcs: $0.457

10 pcs: $0.445

25 pcs: $0.433

50 pcs: $0.422

100 pcs: $0.41

500 pcs: $0.399

1000 pcs: $0.376

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.457

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PMNF1-3F-C

Part Number	PMNF1-3F-C	Manufacturer	Panduit
Description	CONN SPADE TERM 18-22AWG M3 RED	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	77552 pcs	Data sheet	PMNF1-3F-C.pdf
Wire Gauge	18-22 AWG	Width - Outer Edges	0.230" (5.84mm)
Tongue Inside Opening	0.200" (5.08mm)	Termination	Crimp
Terminal Type	Standard	Stud/Tab Size	M3 Stud
Series	Pan-Term®	Packaging	Bulk
Other Names	07498384202 298-15410 PMNF1-3F-C-ND	Mounting Type	Free Hanging (In-Line)
Moisture Sensitivity Level (MSL)	Not Applicable	Material - Insulation	Polyamide (PA), Nylon
Length - Termination	-	Length - Ring Center to Termination	-
Length - Overall	0.830" (21.08mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Diameter	0.148" (3.76mm)	Insulation	Insulated
Features	Serrated Termination	Detailed Description	Red M3 Stud Spade Terminal Connector Crimp 18-22 AWG
Contact Material	Copper	Contact Finish	Tin
Color	Red
