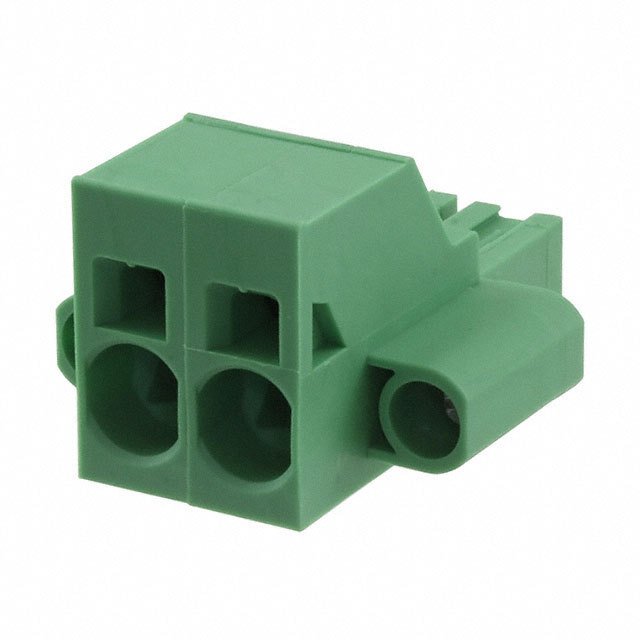

Phoenix Contact
| Part Number | 1711378 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 2POS STR 10.16MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9809 pcs | Data sheet | 1711378.pdf |
| Wire Strip Length | 18mm | Wire Gauge or Range - mm² | 0.75-16mm² |
| Wire Gauge or Range - AWG | 4-20 AWG | Voltage - UL | 600V |
| Voltage - IEC | 1kV | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | Screwless - Spring Cage, Tension Clamp |
| Series | COMBICON SPC | Screw Size | - |
| Positions Per Level | 2 | Plug Wire Entry | 180° |
| Pitch | 0.400" (10.16mm) | Packaging | Bulk |
| Other Names | 1711378-ND 277-10986 SPC 16/ 2-STF-10,16 SPC16/2-STF-10,16 |
Operating Temperature | - |
| Number of Positions | 2 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.988" (25.10mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | Mating Flange | Detailed Description | 2 Position Terminal Block Plug, Female Sockets 0.400" (10.16mm) 180° Free Hanging (In-Line) |
| Current - UL | 66A | Current - IEC | 76A |
| Contact Tail Length | - | Contact Mating Finish | Silver |
| Contact Material | - | Color | Green |
