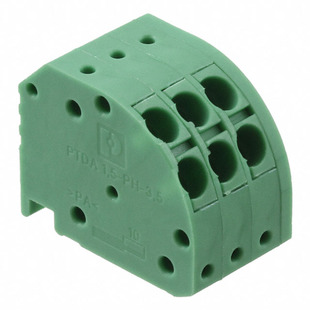

Phoenix Contact
| Part Number | 1725120 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 3POS 45DEG 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 82288 pcs | Data sheet | 1.1725120.pdf2.1725120.pdf |
| Wire Strip Length | 10mm | Wire Gauge or Range - mm² | 0.2-1.5mm² |
| Wire Gauge or Range - AWG | 16-24 AWG | Voltage - UL | 300V |
| Voltage - IEC | 400V | Type | Plug for Unshrouded Header |
| Torque - Screw | - | Termination Style | Screwless - Spring Cage, Tension Clamp |
| Series | COMBICON PTDA | Screw Size | - |
| Positions Per Level | 3 (Mate), 6 (Input) | Plug Wire Entry | 45° |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 1725120-ND 277-13802 PTDA1,5/3-PH-3,5 |
Operating Temperature | - |
| Number of Positions | 3 | Number of Levels | 1 (Mate), 2 (Input) |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.630" (16.00mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | - | Detailed Description | 3 Position Terminal Block Plug for Unshrouded Header 0.138" (3.50mm) 45° Free Hanging (In-Line) |
| Current - UL | 10A | Current - IEC | 8A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
