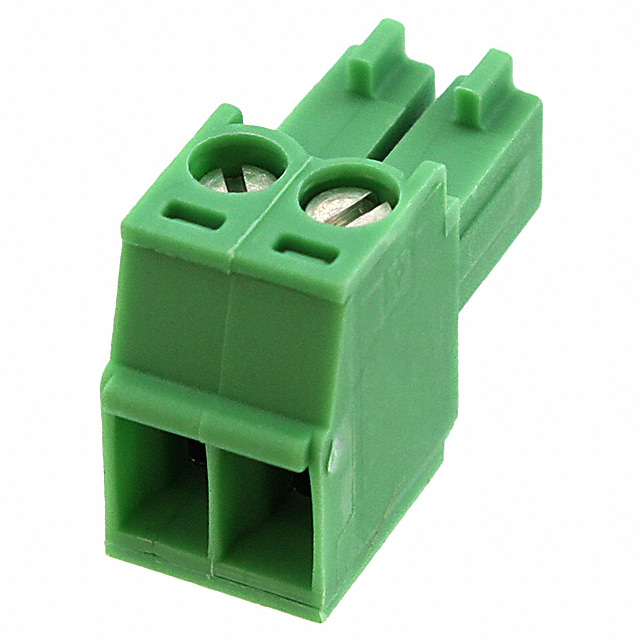

Part Number | 1894655 | Manufacturer | Phoenix Contact |
---|---|---|---|
Description | TERM BLOCK PLUG 2POS STR 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 26658 pcs | Data sheet | |
Wire Strip Length | 7mm | Wire Gauge or Range - mm² | 0.14-1.5mm² |
Wire Gauge or Range - AWG | 14-30 AWG | Voltage - UL | 300V |
Voltage - IEC | 320V | Type | Plug, Female Sockets |
Torque - Screw | 0.22-0.25 Nm (1.9-2.2 Lb-In) | Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
Series | MINI-COMBICON MC | Screw Size | M2 |
Positions Per Level | 2 | Plug Wire Entry | 180° |
Pitch | 0.138" (3.50mm) | Packaging | Bulk |
Other Names | 1894655-ND 277-8992 MC 1.5/ 2-ST-3.5 AU MC1.5/2-ST-3.5AU |
Operating Temperature | - |
Number of Positions | 2 | Number of Levels | 1 |
Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Height | 0.437" (11.10mm) | Ingress Protection | - |
Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
Features | - | Detailed Description | 2 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) |
Current - UL | 8A | Current - IEC | 8A |
Contact Tail Length | - | Contact Mating Finish | Gold |
Contact Material | - | Color | Green |
