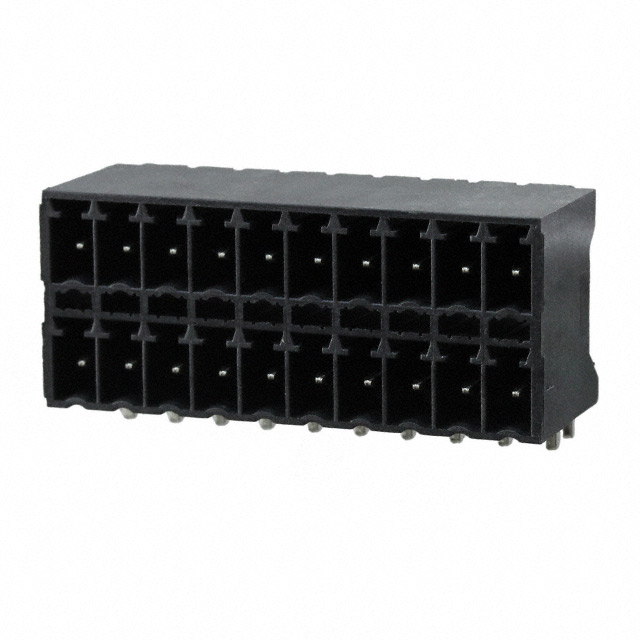

Part Number | 1953790 | Manufacturer | Phoenix Contact |
---|---|---|---|
Description | TERM BLOCK HDR 20POS 90DEG 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 7781 pcs | Data sheet | 1.1953790.pdf2.1953790.pdf |
Wire Strip Length | - | Wire Gauge or Range - mm² | - |
Wire Gauge or Range - AWG | - | Voltage - UL | 150V |
Voltage - IEC | 250V | Type | Header, Male Pins, Shrouded (4 Side) |
Torque - Screw | - | Termination Style | Solder |
Series | COMBICON MCDN | Screw Size | - |
Positions Per Level | 10 | Plug Wire Entry | - |
Pitch | 0.138" (3.50mm) | Packaging | Bulk |
Other Names | 1953790-ND 277-14457 MCDN 1,5/10-G1-3,5 P26THR MCDN1,5/10-G1-3,5P26THR |
Operating Temperature | - |
Number of Positions | 20 | Number of Levels | 2 |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Height | 0.598" (15.19mm) | Ingress Protection | - |
Housing Material | Liquid Crystal Polymer (LCP) | Header Orientation | 90°, Right Angle |
Features | - | Detailed Description | 20 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole |
Current - UL | 8A | Current - IEC | 8A per Position |
Contact Tail Length | 0.102" (2.60mm) | Contact Mating Finish | Tin |
Contact Material | - | Color | Black |
