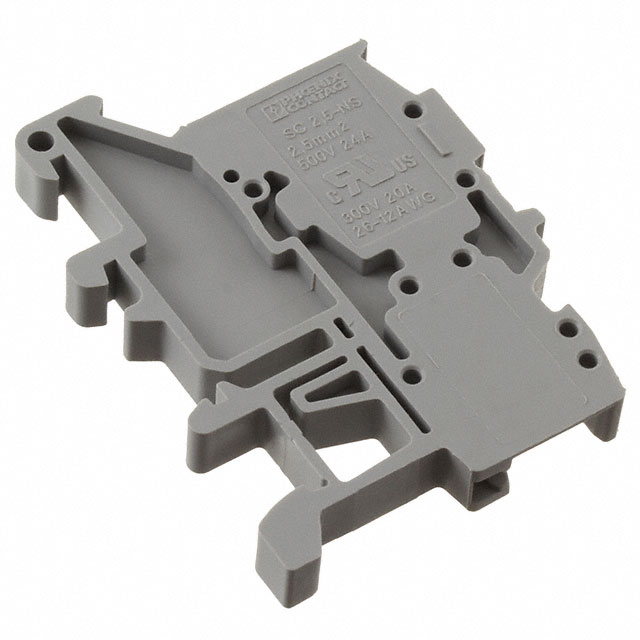

Part Number | 3042340 | Manufacturer | Phoenix Contact |
---|---|---|---|
Description | TERM BLOCK RCPT 1POS STR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 66305 pcs | Data sheet | 3042340.pdf |
Wire Strip Length | 10mm | Wire Gauge or Range - mm² | 0.08-4mm² |
Wire Gauge or Range - AWG | 12-26 AWG | Voltage - UL | 300V |
Voltage - IEC | 500V | Type | Receptacle, Male Pins |
Torque - Screw | - | Termination Style | Screwless - Spring Cage, Tension Clamp |
Series | CLIPLINE COMBI SC | Screw Size | - |
Positions Per Level | 1 | Plug Wire Entry | 180° |
Pitch | - | Packaging | Bulk |
Other Names | 277-15111 3042340-ND SC2,5-NS/1-L SC25NS1L |
Operating Temperature | - |
Number of Positions | 1 | Number of Levels | 1 |
Mounting Type | DIN Rail/Channel | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Height | 1.634" (41.50mm) | Ingress Protection | - |
Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
Features | Coupling | Detailed Description | 1 Position Terminal Block Receptacle, Male Pins 180° DIN Rail/Channel |
Current - UL | 20A | Current - IEC | 24A |
Contact Tail Length | - | Contact Mating Finish | - |
Contact Material | - | Color | Gray |
