23H018D10B

Portescap

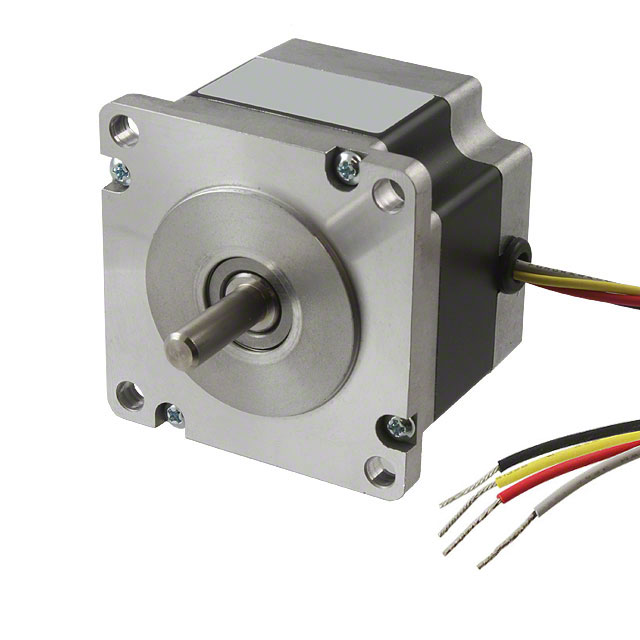

Image may be representation. See specifications for product details.

Product Overview

Part Number:	23H018D10B
Manufacturer/Brand:	Portescap
Product description	STEP MOTOR HYBRID BIPOLAR 5.7V
Datasheets:	1.23H018D10B.pdf 2.23H018D10B.pdf 3.23H018D10B.pdf 4.23H018D10B.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5013 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5013 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 23H018D10B

Part Number	23H018D10B	Manufacturer	Portescap
Description	STEP MOTOR HYBRID BIPOLAR 5.7V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5013 pcs	Data sheet	1.23H018D10B.pdf 2.23H018D10B.pdf 3.23H018D10B.pdf 4.23H018D10B.pdf
Weight	1 lb (453.59g)	Voltage - Rated	5.7VDC
Type	Hybrid	Torque - Holding (oz-in / mNm)	75 / 530
Termination Style	Wire Leads	Steps per Revolution	200
Step Angle	1.8°	Size / Dimension	Square - 2.250" x 2.250" (57.15mm x 57.15mm)
Series	H3	Rotor Inertia	190gcm²
Other Names	403-1038	Operating Temperature	-20°C ~ 40°C
NEMA Frame Size	23	Mounting Hole Spacing	1.856" (47.14mm)
Length - Shaft and Bearing	0.810" (20.57mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Round Shaft	Diameter - Shaft	0.250" (6.35mm)
Detailed Description	Bipolar Stepper Motor Frame Size 23 200 Step 1A 5.7VDC	Current Rating	1A
Coil Type	Bipolar	Coil Resistance	5.7 Ohms
Approvals	CE, UL	Accuracy	±5%
