TOP232YN

Power Integrations

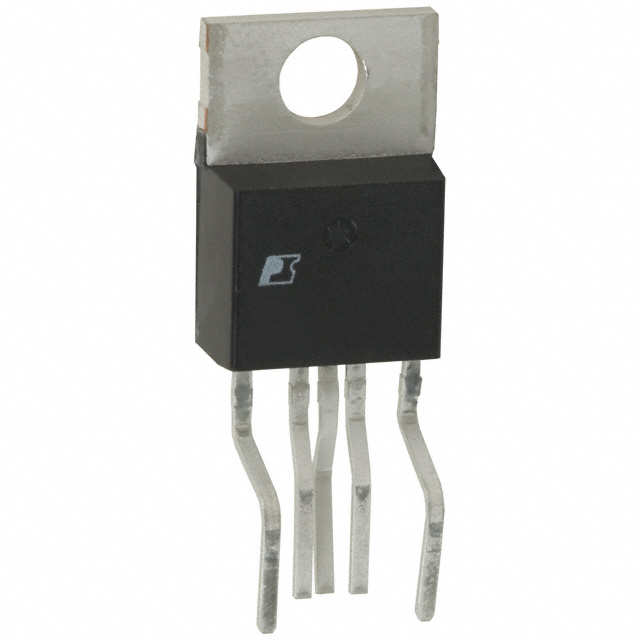

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TOP232YN
Manufacturer/Brand:	Power Integrations
Product description	IC OFFLINE SWIT OVP UVLO TO220
Datasheets:	TOP232YN.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	35164 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 35164 pcs

Reference Price (In US Dollars)

1 pcs: $1.071

10 pcs: $0.958

50 pcs: $0.862

100 pcs: $0.785

250 pcs: $0.709

500 pcs: $0.636

1000 pcs: $0.536

2500 pcs: $0.51

5000 pcs: $0.49

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:Info@infinity-electronic.com

Target Price:(USD)
Qty:

Total:$1.071

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TOP232YN

Part Number	TOP232YN	Manufacturer	Power Integrations
Description	IC OFFLINE SWIT OVP UVLO TO220	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	35164 pcs	Data sheet	TOP232YN.pdf
Voltage - Supply (Vcc/Vdd)	-	Voltage - Breakdown	700V
Topology	Flyback	Supplier Device Package	TO-220-7B
Series	TOPSwitch®-FX	Power (Watts)	25W
Packaging	Tube	Package / Case	TO-220-7 (Formed Leads), 5 Leads
Output Isolation	Isolated	Other Names	596-1800 TOP232YN-ND
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Internal Switch(s)	Yes	Frequency - Switching	66kHz ~ 132kHz
Fault Protection	Current Limiting, Over Temperature, Over Voltage	Duty Cycle	78%
Detailed Description	Converter Offline Flyback Topology 66kHz ~ 132kHz TO-220-7B	Control Features	Frequency Control
