PA4416NL

Pulse Electronics Corporation

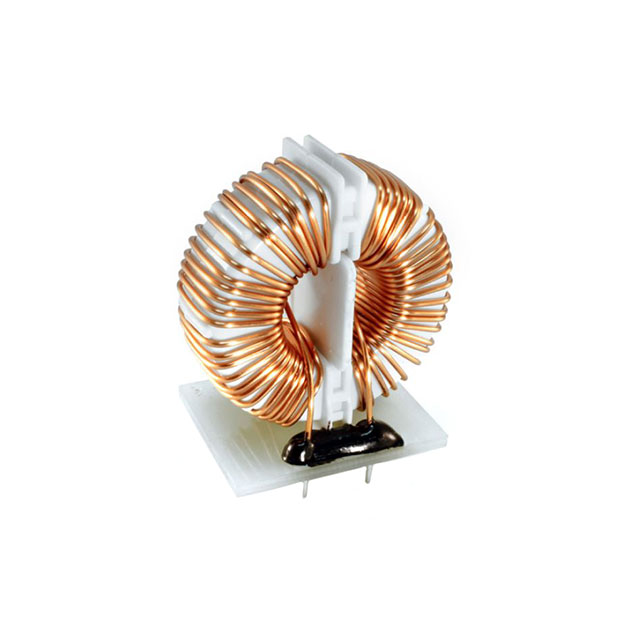

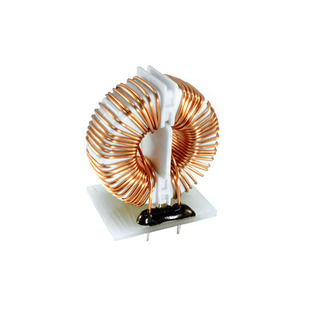

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA4416NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CMC 8A 2LN 13.8 KOHM TH
Datasheets:	PA4416NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8068 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 8068 pcs

Reference Price (In US Dollars)

1 pcs: $3.593

28 pcs: $2.954

112 pcs: $2.475

504 pcs: $2.316

1008 pcs: $2.124

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$3.593

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA4416NL

Part Number	PA4416NL	Manufacturer	Pulse Electronics Corporation
Description	CMC 8A 2LN 13.8 KOHM TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8068 pcs	Data sheet	PA4416NL.pdf
Voltage Rating - DC	-	Voltage Rating - AC	250V
Size / Dimension	1.693" L x 1.063" W (43.00mm x 27.00mm)	Series	-
Ratings	-	Packaging	Tray
Package / Case	Vertical, 4 PC Pin	Operating Temperature	-40°C ~ 125°C
Number of Lines	2	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Impedance @ Frequency	13.8 kOhms @ 1.96MHz	Height (Max)	1.811" (46.00mm)
Filter Type	-	Features	-
Detailed Description	2 Line Common Mode Choke Through Hole 13.8 kOhms @ 1.96MHz 8A DCR 27 mOhm	DC Resistance (DCR) (Max)	27 mOhm
Current Rating (Max)	8A	Approvals	-
