PA4547.103NLT

Pulse Electronics Corporation

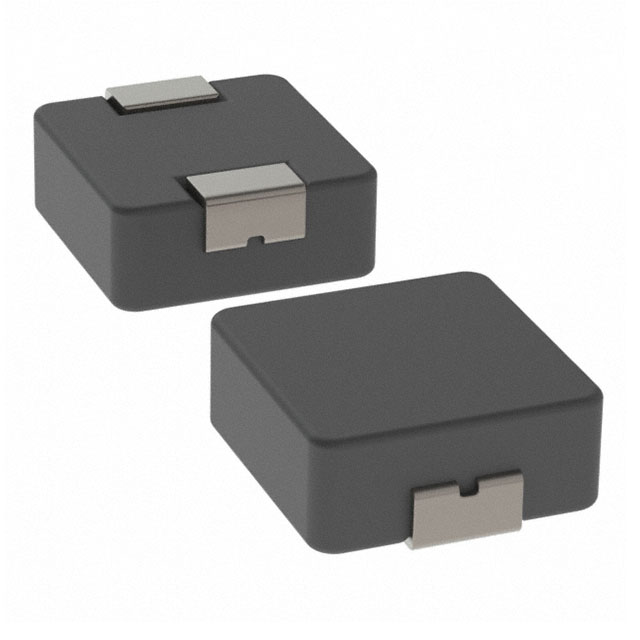

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA4547.103NLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	INDUCTOR 10UH SMT 3.8 X 3.4
Datasheets:	PA4547.103NLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	67462 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 67462 pcs

Reference Price (In US Dollars)

1 pcs: $0.523

10 pcs: $0.486

100 pcs: $0.351

500 pcs: $0.269

1000 pcs: $0.239

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.523

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA4547.103NLT

Part Number	PA4547.103NLT	Manufacturer	Pulse Electronics Corporation
Description	INDUCTOR 10UH SMT 3.8 X 3.4	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	67462 pcs	Data sheet	PA4547.103NLT.pdf
Type	Molded	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.138" L x 0.126" W (3.50mm x 3.20mm)
Shielding	Unshielded	Series	PA4547.XXXNLT
Ratings	-	Q @ Freq	-
Packaging	Cut Tape (CT)	Package / Case	Nonstandard
Other Names	553-4064-1	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	100kHz	Inductance	10µH
Height - Seated (Max)	0.059" (1.50mm)	Frequency - Self Resonant	-
Features	-	Detailed Description	10µH Unshielded Molded Inductor 1.2A 522 mOhm Max Nonstandard
DC Resistance (DCR)	522 mOhm Max	Current Rating	1.2A
Current - Saturation	1.6A
