PB2020.223NLT

Pulse Electronics Corporation

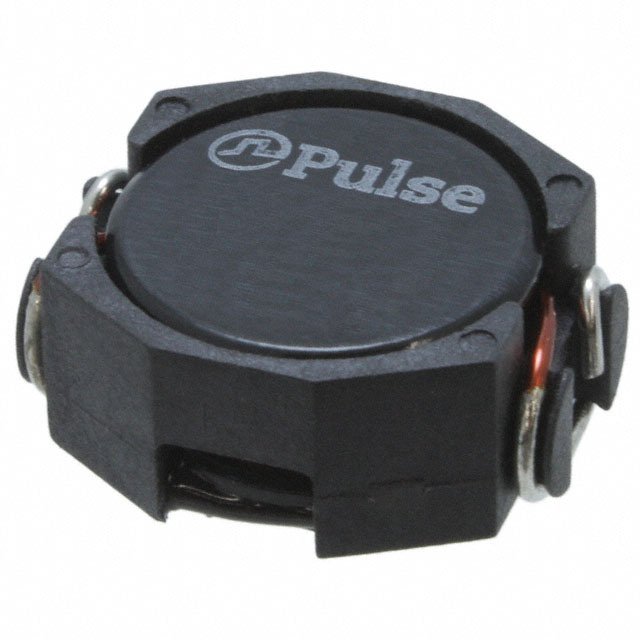

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PB2020.223NLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	FIXED IND 22UH 8.1A 20 MOHM SMD
Datasheets:	PB2020.223NLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	52955 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 52955 pcs

Reference Price (In US Dollars)

100 pcs: $0.695

300 pcs: $0.657

500 pcs: $0.618

1000 pcs: $0.58

2500 pcs: $0.56

5000 pcs: $0.541

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.695

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PB2020.223NLT

Part Number	PB2020.223NLT	Manufacturer	Pulse Electronics Corporation
Description	FIXED IND 22UH 8.1A 20 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	52955 pcs	Data sheet	PB2020.223NLT.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.940" L x 0.820" W (23.87mm x 20.83mm)
Shielding	Unshielded	Series	PB2020NL
Ratings	-	Q @ Freq	-
Packaging	Tape & Reel (TR)	Package / Case	Nonstandard
Other Names	553-2000-2 PB2020.223NLT-ND PB2020223NLT	Operating Temperature	-40°C ~ 130°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	22µH	Height - Seated (Max)	0.400" (10.16mm)
Frequency - Self Resonant	-	Features	-
Detailed Description	22µH Unshielded Wirewound Inductor 8.1A 20 mOhm Max Nonstandard	DC Resistance (DCR)	20 mOhm Max
Current Rating	8.1A	Current - Saturation	13A
