PE-68421NL

Pulse Electronics Corporation

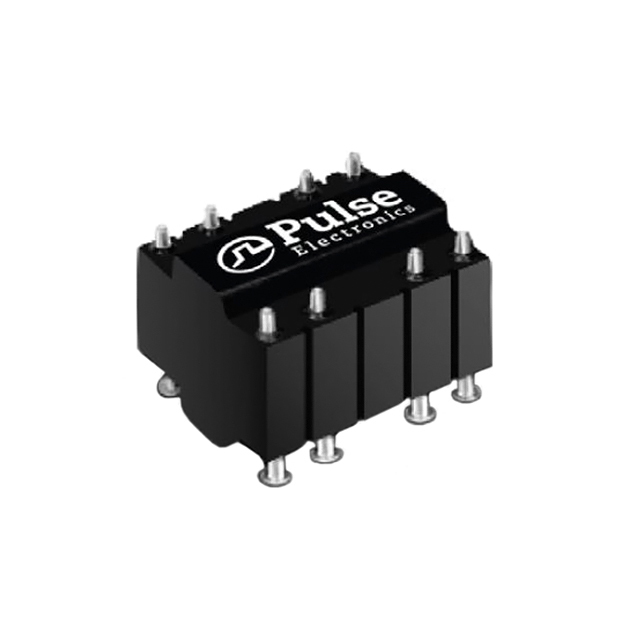

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PE-68421NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	XFRMR FLYBCK FOR 100KHZ SWITCHER
Datasheets:	PE-68421NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6998 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6998 pcs

Reference Price (In US Dollars)

1 pcs: $4.745

10 pcs: $3.506

35 pcs: $3.236

70 pcs: $3.128

105 pcs: $3.042

280 pcs: $2.999

525 pcs: $2.967

1015 pcs: $2.913

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.745

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PE-68421NL

Part Number	PE-68421NL	Manufacturer	Pulse Electronics Corporation
Description	XFRMR FLYBCK FOR 100KHZ SWITCHER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6998 pcs	Data sheet	PE-68421NL.pdf
Voltage - Primary	18 ~ 36V	Voltage - Isolation	1500Vrms
Voltage - Auxiliary	-	Type	For DC/DC Converters
Size / Dimension	0.970" L x 1.070" W (24.64mm x 27.18mm)	Series	-
Packaging	Tray	Other Names	553-3889 PE-68421NL-ND
Operating Temperature	-40°C ~ 130°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Intended Chipset	LM2585, LM2586, LM2587, LM2588	Inductance @ Frequency	-
Height - Seated (Max)	0.680" (17.27mm)	Frequency	-
Footprint	0.970" L x 1.070" W (24.64mm x 27.18mm)	Chipset Manufacturer	National Semiconductor
Applications	Flyback Converters
