PE-69011NLT

Pulse Electronics Corporation

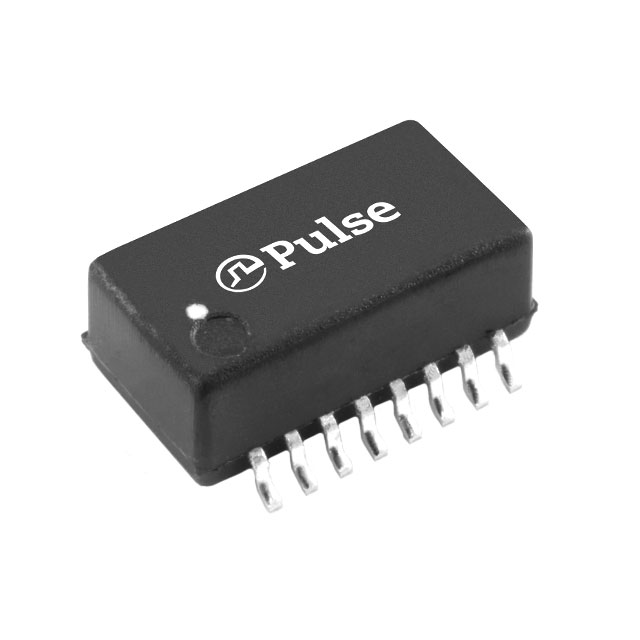

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PE-69011NLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	COMMON MODE CHOKE 8LN SMD
Datasheets:	PE-69011NLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	28871 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 28871 pcs

Reference Price (In US Dollars)

850 pcs: $1.18

1700 pcs: $1.141

2550 pcs: $1.101

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.18

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PE-69011NLT

Part Number	PE-69011NLT	Manufacturer	Pulse Electronics Corporation
Description	COMMON MODE CHOKE 8LN SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	28871 pcs	Data sheet	PE-69011NLT.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	0.500" L x 0.275" W (12.70mm x 6.99mm)	Series	-
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	Vertical, 16 Gull Wing	Other Names	1840-1152-2 PE-69011NLT-ND
Operating Temperature	-	Number of Lines	8
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	4 (72 Hours)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height (Max)	0.200" (5.08mm)
Filter Type	Signal Line	Features	-
Detailed Description	8 Line Common Mode Choke Surface Mount DCR 350 mOhm	DC Resistance (DCR) (Max)	350 mOhm
Current Rating (Max)	-	Approvals	-
