W3501

Pulse Electronics Corporation

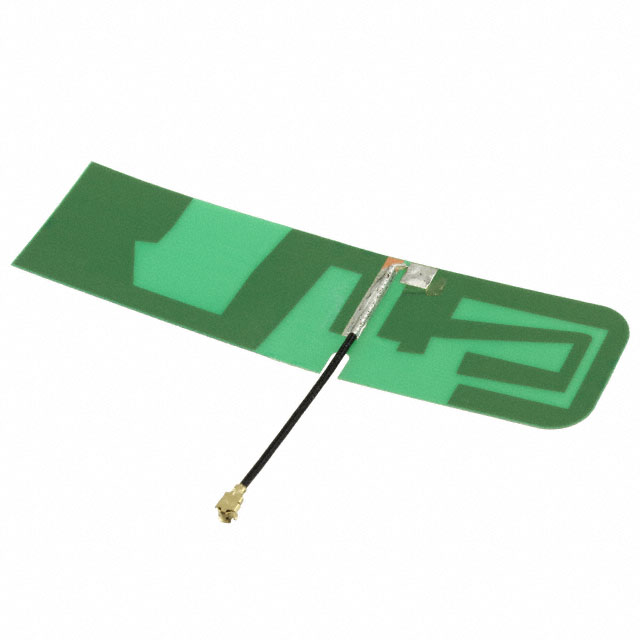

Image may be representation. See specifications for product details.

Product Overview

Part Number:	W3501
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	RF ANT 892MHZ/1.9GHZ PCB TRACE
Datasheets:	1.W3501.pdf 2.W3501.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18474 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 18474 pcs

Reference Price (In US Dollars)

1 pcs: $1.672

10 pcs: $1.493

25 pcs: $1.343

100 pcs: $1.224

250 pcs: $1.105

500 pcs: $0.991

1000 pcs: $0.836

2500 pcs: $0.794

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.672

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of W3501

Part Number	W3501	Manufacturer	Pulse Electronics Corporation
Description	RF ANT 892MHZ/1.9GHZ PCB TRACE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18474 pcs	Data sheet	1.W3501.pdf 2.W3501.pdf
VSWR	-	Termination	Connector, IPEX (U.FL)
Series	-	Return Loss	-7dB, -8dB
Packaging	Bulk	Other Names	553-2581 553-2581-1 553-2581-1-ND
Number of Bands	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Height (Max)	0.008" (0.20mm)
Gain	1.5dBi, 3.75dBi	Frequency Range	824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz
Frequency Group	UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)	Frequency (Center/Band)	892MHz, 1.9GHz
Features	-	Detailed Description	892MHz, 1.9GHz GSM PCB Trace RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz 1.5dBi, 3.75dBi Connector, IPEX (U.FL) Surface Mount
Applications	GSM	Antenna Type	PCB Trace
