W6103B0100

Pulse Electronics Corporation

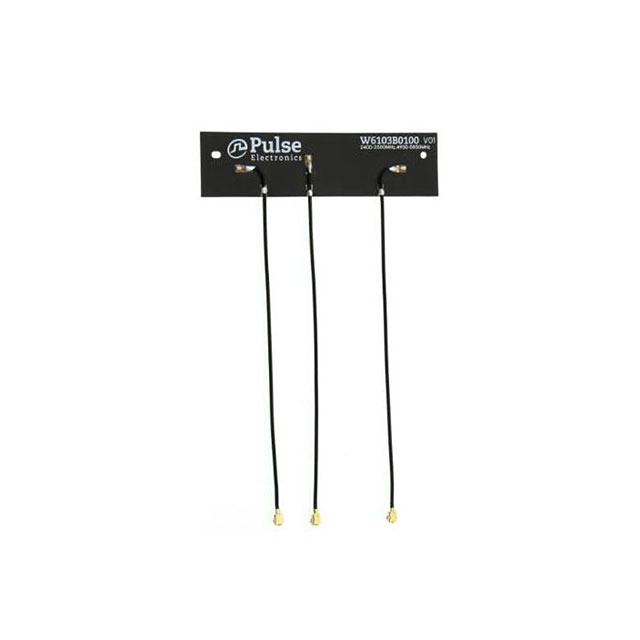

Image may be representation. See specifications for product details.

Product Overview

Part Number:	W6103B0100
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	RF ANT 2.4GHZ/5.4GHZ FLAT PATCH
Datasheets:	1.W6103B0100.pdf 2.W6103B0100.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15836 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 15836 pcs

Reference Price (In US Dollars)

1 pcs: $2.213

10 pcs: $1.976

25 pcs: $1.778

100 pcs: $1.62

250 pcs: $1.462

500 pcs: $1.312

1000 pcs: $1.106

2500 pcs: $1.051

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.213

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of W6103B0100

Part Number	W6103B0100	Manufacturer	Pulse Electronics Corporation
Description	RF ANT 2.4GHZ/5.4GHZ FLAT PATCH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15836 pcs	Data sheet	1.W6103B0100.pdf 2.W6103B0100.pdf
VSWR	2	Termination	Connector, IPEX
Series	-	Return Loss	-
Power - Max	3W	Packaging	Bulk
Other Names	553-3732	Number of Bands	1
Mounting Type	Adhesive	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Height (Max)	0.006" (0.15mm)	Gain	4.5dBi
Frequency Range	2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz	Frequency Group	UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band)	2.4GHz, 5.4GHz	Features	-
Detailed Description	2.4GHz, 5.4GHz Bluetooth, Wi-Fi, Zigbee™ Flat Patch RF Antenna 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz 4.5dBi Connector, IPEX Adhesive	Applications	Bluetooth, Wi-Fi, Zigbee™
Antenna Type	Flat Patch
