Part Number | STGAP1AS | Manufacturer | STMicroelectronics |
---|---|---|---|
Description | DGTL ISO 2.5KV 1CH GATE DVR 24SO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 12656 pcs | Data sheet | STGAP1AS.pdf |
Voltage - Supply | 4.5 V ~ 36 V | Voltage - Isolation | 2500Vrms |
Voltage - Forward (Vf) (Typ) | - | Technology | Magnetic Coupling |
Supplier Device Package | 24-SO | Series | Automotive, AEC-Q100 |
Rise / Fall Time (Typ) | 25ns, 25ns (Max) | Pulse Width Distortion (Max) | 10ns |
Propagation Delay tpLH / tpHL (Max) | 130ns, 130ns | Packaging | Tube |

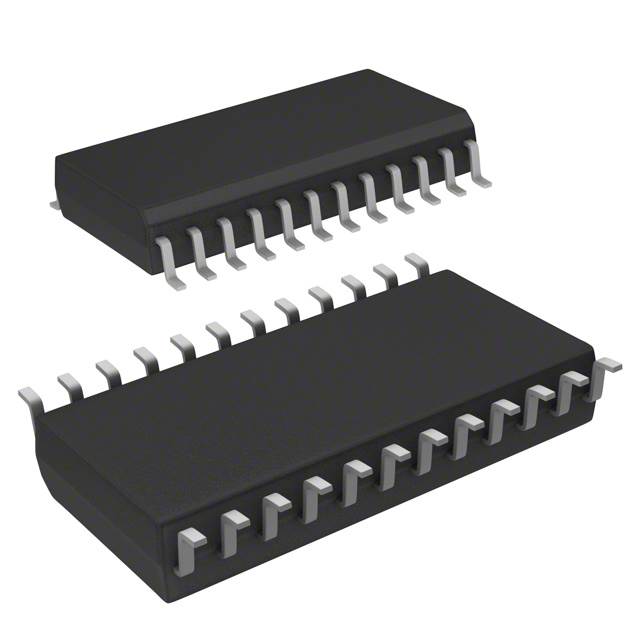

Package / Case | 24-SOIC (0.295", 7.50mm Width) | Other Names | 497-16903 STGAP1AS-ND |
Operating Temperature | -40°C ~ 125°C | Number of Channels | 1 |
Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | Gate Driver Magnetic Coupling 2500Vrms 1 Channel 24-SO |
Current - Peak Output | - | Current - Output High, Low | 2.5A, 2.5A |
Common Mode Transient Immunity (Min) | - | Approvals | - |
