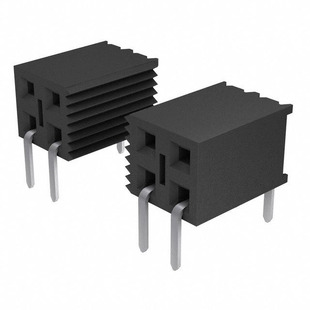

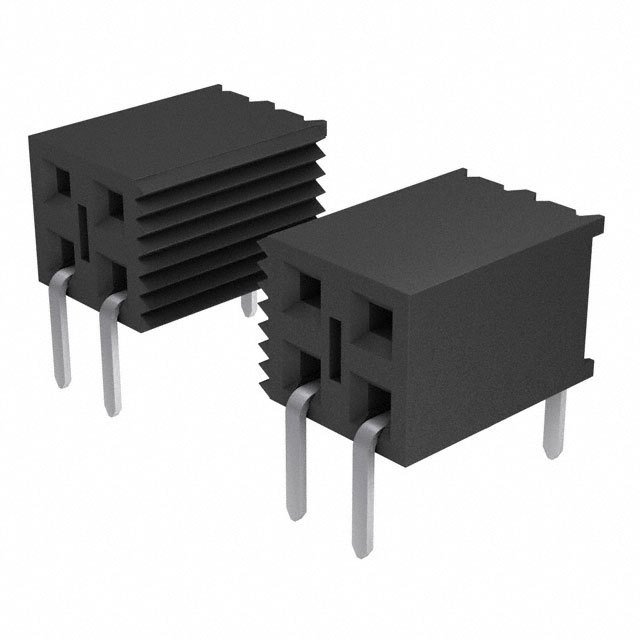

Samtec, Inc.
| Part Number | BCS-135-L-D-HE | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT 70POS .100" DUAL HORZ | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7741 pcs | Data sheet | 1.BCS-135-L-D-HE.pdf2.BCS-135-L-D-HE.pdf3.BCS-135-L-D-HE.pdf |
| Voltage Rating | 475VAC | Termination | Solder |
| Style | Board to Board | Series | Tiger Claw™ BCS |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Other Names | SAM1006-35 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 70 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.225" (5.72mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 70 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
| Current Rating | 4.6A per Contact | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.125" (3.18mm) | Contact Finish Thickness - Post | 50.0µin (1.27µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
