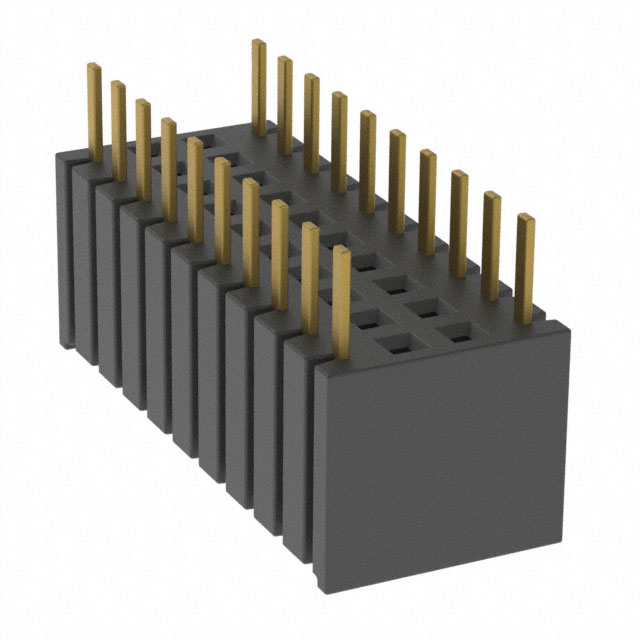

Part Number | BSW-110-04-S-D | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | BOTTOM MOUNT STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 26430 pcs | Data sheet | 1.BSW-110-04-S-D.pdf2.BSW-110-04-S-D.pdf |
Voltage Rating | - | Termination | Solder |
Style | Board to Board | Series | BSW |
Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Bulk | Other Names | BSW-110-04-S-D-ND SAM10931 |
Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 20 |
Mounting Type | Through Hole, Bottom Mount | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Material | Polyethylene Terephthalate (PET), Glass Filled | Insulation Height | 0.350" (8.89mm) |
Insulation Color | Black | Ingress Protection | - |
Features | - | Fastening Type | Push-Pull |
Detailed Description | 20 Position Receptacle, Breakaway Connector Through Hole, Bottom Mount | Current Rating | - |
Contact Type | Female Socket | Contact Shape | Square |
Contact Material | Phosphor Bronze | Contact Length - Post | 0.165" (4.19mm) |
Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Receptacle, Breakaway | Applications | - |
