Samtec, Inc.

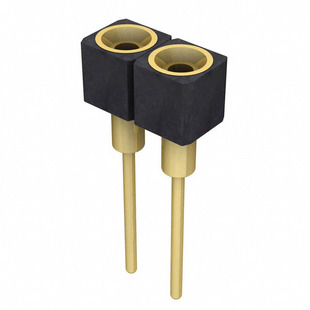

| Part Number | SS-102-G-1C | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RECPT 2POS .100" T/H GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 88186 pcs | Data sheet | 1.SS-102-G-1C.pdf2.SS-102-G-1C.pdf3.SS-102-G-1C.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | SS |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.193" (4.90mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 2 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Beryllium Copper | Contact Length - Post | 0.260" (6.60mm) |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
