RN202-2-02-1M1

Schaffner EMC, Inc.

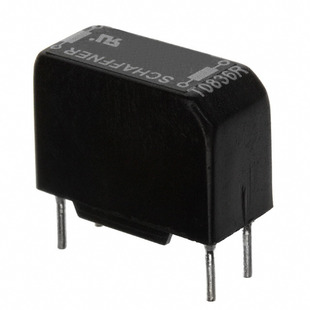

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RN202-2-02-1M1
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	CMC 1.1MH 2A 2LN TH
Datasheets:	RN202-2-02-1M1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	63788 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 63788 pcs

Reference Price (In US Dollars)

1 pcs: $0.597

10 pcs: $0.55

100 pcs: $0.385

500 pcs: $0.312

1000 pcs: $0.284

2500 pcs: $0.275

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.597

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RN202-2-02-1M1

Part Number	RN202-2-02-1M1	Manufacturer	Schaffner EMC, Inc.
Description	CMC 1.1MH 2A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	63788 pcs	Data sheet	RN202-2-02-1M1.pdf
Voltage Rating - DC	-	Voltage Rating - AC	300V
Size / Dimension	0.717" L x 0.346" W (18.20mm x 8.80mm)	Series	RN
Ratings	-	Packaging	Tray
Package / Case	Vertical, 4 PC Pin	Other Names	816541 817-2156
Operating Temperature	-40°C ~ 100°C	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	1.1mH @ 10kHz
Height (Max)	0.543" (13.80mm)	Filter Type	Power Line
Features	-	Detailed Description	1.1mH @ 10kHz 2 Line Common Mode Choke Through Hole 2A DCR 70 mOhm (Typ)
DC Resistance (DCR) (Max)	70 mOhm (Typ)	Current Rating (Max)	2A
Approvals	ENEC, UR, VDE
