SparkFun
| Part Number | ROB-09238 | Manufacturer | SparkFun |
|---|---|---|---|

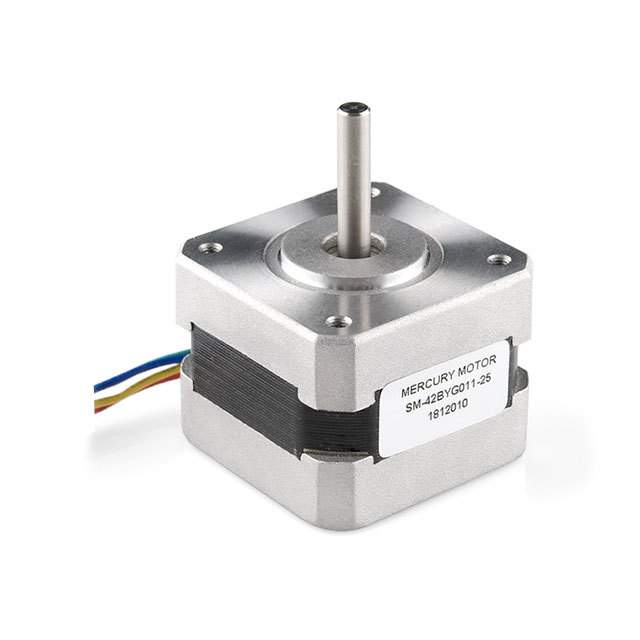

| Description | STEPPER MOTOR HYBRID BIPOLAR 12V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5583 pcs | Data sheet | ROB-09238.pdf |
| Weight | 0.441 lb (200.03g) | Voltage - Rated | 12VDC |
| Type | Hybrid | Torque - Holding (oz-in / mNm) | 32.57 / 230 |
| Termination Style | Wire Leads | Steps per Revolution | 200 |
| Step Angle | 1.8° | Size / Dimension | Square - 1.665" x 1.665" (42.30mm x 42.30mm) |
| Series | - | Rotor Inertia | 18.7gcm² |
| Other Names | 1568-1105 9238 SM-42BYG011-25 |
Operating Temperature | - |
| NEMA Frame Size | 17 | Mounting Hole Spacing | 1.220" (31.00mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Length - Shaft and Bearing | 0.945" (24.00mm) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Features | Round Shaft |
| Diameter - Shaft | 0.197" (5.00mm) | Detailed Description | Bipolar Stepper Motor 200 Step 0.33A 12VDC |
| Current Rating | 330mA | Coil Type | Bipolar |
| Coil Resistance | 32.6 Ohms | Approvals | - |
| Accuracy | - |
