Sullins Connector Solutions

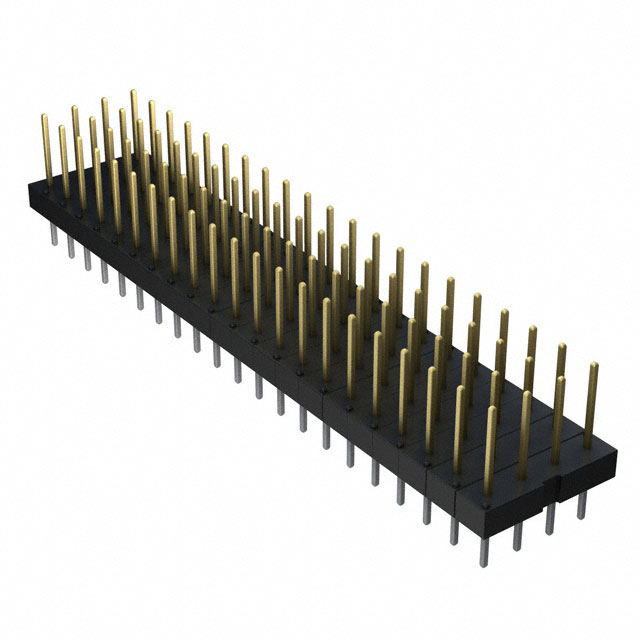

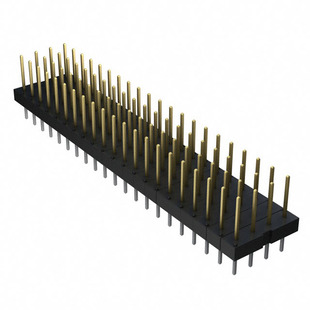

| Part Number | PRPN214RCCN | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER 2MM QUAD STR 84POS | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3072 pcs | Data sheet | 1.PRPN214RCCN.pdf2.PRPN214RCCN.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | - | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
| Overall Contact Length | 0.328" (8.32mm) | Other Names | S2401-21 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 4 |
| Number of Positions Loaded | All | Number of Positions | 84 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyester | Insulation Height | 0.059" (1.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 84 position 0.079" (2.00mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.094" (2.40mm) |
| Contact Length - Mating | 0.173" (4.40mm) | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
