Sunon

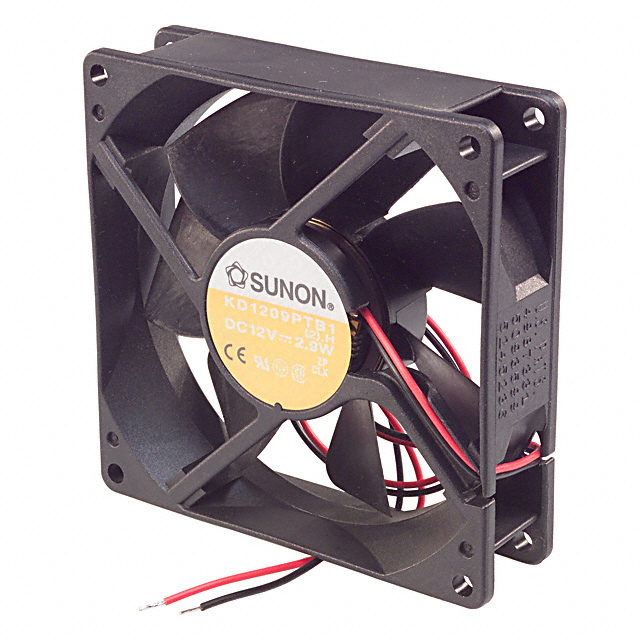

| Part Number | KD1209PTB1(2) H | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 92X25MM 12VDC WIRE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3885 pcs | Data sheet | 1.KD1209PTB1(2) H.pdf2.KD1209PTB1(2) H.pdf |
| Width | 25.00mm | Weight | 0.238 lb (107.95g) |
| Voltage Range | 5 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.170 in H2O (42.3 Pa) |
| Size / Dimension | Square - 92mm L x 92mm H | Series | KD |
| RPM | 2700 RPM | Power (Watts) | 2.50W |
| Other Names | 259-1277 K1292PTB14--RH KD1209PTB1(2).H KD1209PTB1(2)H KD1209PTB1(2)H-ND KD1209PTB12H |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 34.5 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.210A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 49.5 CFM (1.39m³/min) |
