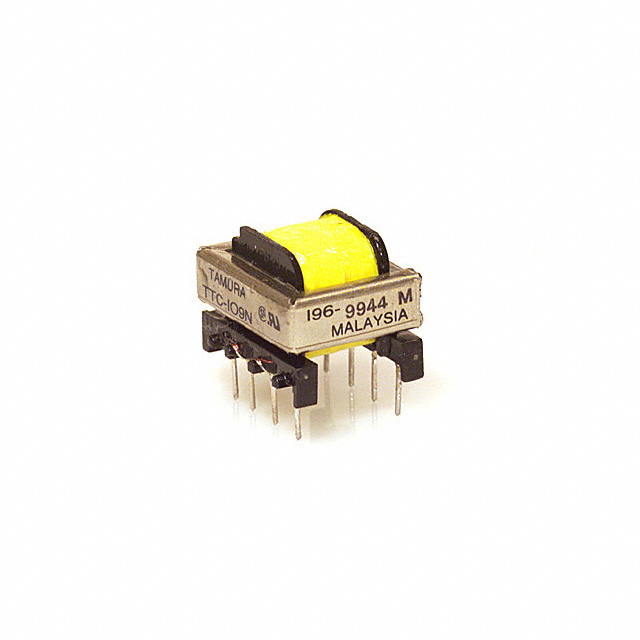

Part Number | TTC-109N | Manufacturer | Tamura |
---|---|---|---|
Description | TRANSF TELE COUP 600 OHM 90MADC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 4675 pcs | Data sheet | TTC-109N.pdf |
Weight | - | Voltage - Isolation | 1500VRMS @ 1 Minute |
Turns Ratio - Primary:Secondary | 1:1 | Transformer Type | Data/Voice Coupling |
Termination Style | PC Pin | Size / Dimension | 0.823" L x 0.752" W (20.90mm x 19.10mm) |
Series | TTC | Return Loss | - |
Power Level | -45dB ~ 10dB | Packaging | Bulk |
Other Names | MT4116 T2111 T2111(BOX) T2111(BULK) |
Operating Temperature | - |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 3dB Max @ 660Hz ~ 800Hz, 2.5dB Max @ 800Hz @ 3.5kHz |
Impedance - Secondary (Ohms) | 600 | Impedance - Primary (Ohms) | 600 |
Height - Seated (Max) | 0.630" (16.00mm) | Frequency Response | -1dB ~ 0.7dB |
Frequency Range | 660Hz ~ 3.5kHz | DC Resistance (DCR) - Secondary | 117 Ohm |
DC Resistance (DCR) - Primary | 71 Ohm | Approvals | CSA-C22.2 No. 66-M1988, UL1862 |
