TTC-294

Tamura

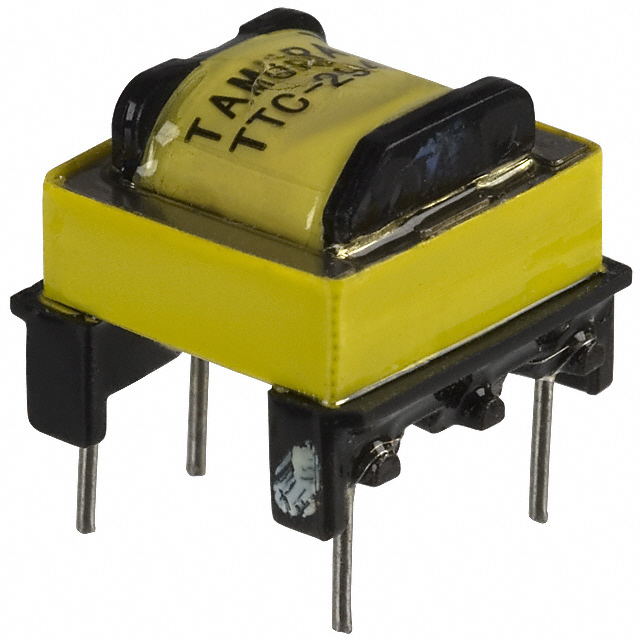

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TTC-294
Manufacturer/Brand:	Tamura
Product description	TRANSFORM TELECOMM COUPL 600 OHM
Datasheets:	TTC-294.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31837 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 31837 pcs

Reference Price (In US Dollars)

1000 pcs: $0.936

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.936

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TTC-294

Part Number	TTC-294	Manufacturer	Tamura
Description	TRANSFORM TELECOMM COUPL 600 OHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31837 pcs	Data sheet	TTC-294.pdf
Weight	-	Voltage - Isolation	1850V @ 1 Second
Turns Ratio - Primary:Secondary	1:1	Transformer Type	Data/Voice Coupling
Termination Style	PC Pin	Size / Dimension	0.591" L x 0.571" W (15.00mm x 14.50mm)
Series	TTC	Return Loss	-
Power Level	-	Packaging	Bulk
Other Names	MT7205	Operating Temperature	-
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Loss	1.2dB Max @ 1kHz
Impedance - Secondary (Ohms)	600CT	Impedance - Primary (Ohms)	600
Height - Seated (Max)	0.472" (12.00mm)	Frequency Response	±0.16dB
Frequency Range	300Hz ~ 3.5kHz	DC Resistance (DCR) - Secondary	14 Ohm, 62 Ohm
DC Resistance (DCR) - Primary	58 Ohm	Approvals	UL1950
