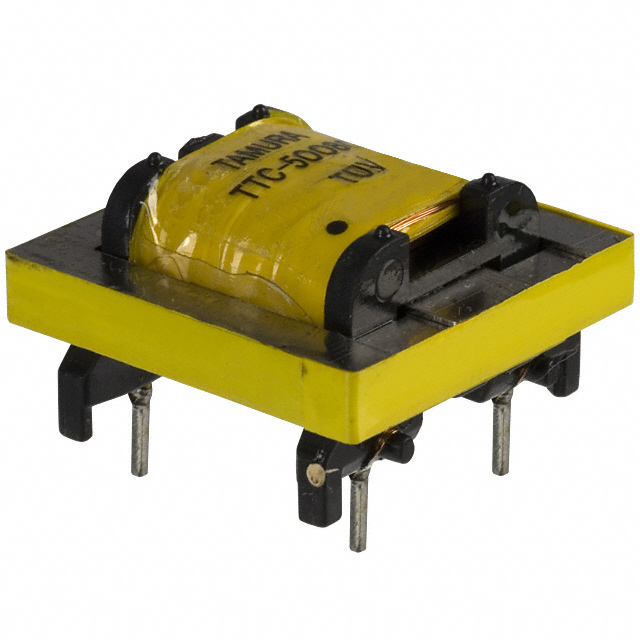

Part Number | TTC-5008 | Manufacturer | Tamura |
---|---|---|---|
Description | TRANSFORMER COUPLING 600:374 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 4915 pcs | Data sheet | TTC-5008.pdf |
Weight | - | Voltage - Isolation | 1875VRMS @ 1 Second |
Turns Ratio - Primary:Secondary | 1:1 | Transformer Type | - |
Termination Style | PC Pin | Size / Dimension | 0.886" L x 0.909" W (22.50mm x 23.10mm) |
Series | TTC | Return Loss | 25dB Min @ 1kHz |
Power Level | - | Packaging | Bulk |
Other Names | MT7227 TTC-5008-ND TTC-5008C |
Operating Temperature | - |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 2.5dB Max @ 1kHz |
Impedance - Secondary (Ohms) | 374 | Impedance - Primary (Ohms) | 600 |
Height - Seated (Max) | 0.543" (13.80mm) | Frequency Response | ±0.2dB |
Frequency Range | 200Hz ~ 4kHz | DC Resistance (DCR) - Secondary | 120 Ohm |
DC Resistance (DCR) - Primary | 108 Ohm | Approvals | UL1950, UL60950, EN60950 |
