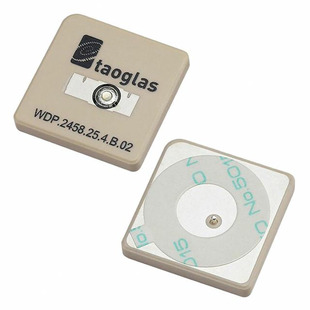

WDP.2458.25.4.B.02

Taoglas

Image may be representation. See specifications for product details.

Product Overview

Part Number:	WDP.2458.25.4.B.02
Manufacturer/Brand:	Taoglas
Product description	RF ANT 2.4/5.5GHZ CER PATCH PIN
Datasheets:	WDP.2458.25.4.B.02.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12781 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 12781 pcs

Reference Price (In US Dollars)

1 pcs: $2.346

100 pcs: $2.306

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.346

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of WDP.2458.25.4.B.02

Part Number	WDP.2458.25.4.B.02	Manufacturer	Taoglas
Description	RF ANT 2.4/5.5GHZ CER PATCH PIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12781 pcs	Data sheet	WDP.2458.25.4.B.02.pdf
VSWR	-	Termination	Pin
Series	-	Return Loss	-19dB, -5dB
Power - Max	10W	Packaging	Tray
Other Names	931-1338	Number of Bands	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Height (Max)	0.157" (4.00mm)	Gain	6dBi, 8dBi
Frequency Range	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz	Frequency Group	UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band)	2.4GHz, 5.5GHz	Features	-
Detailed Description	2.4GHz, 5.5GHz WLAN Ceramic Patch RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz 6dBi, 8dBi Pin Surface Mount	Applications	WLAN
Antenna Type	Ceramic Patch
