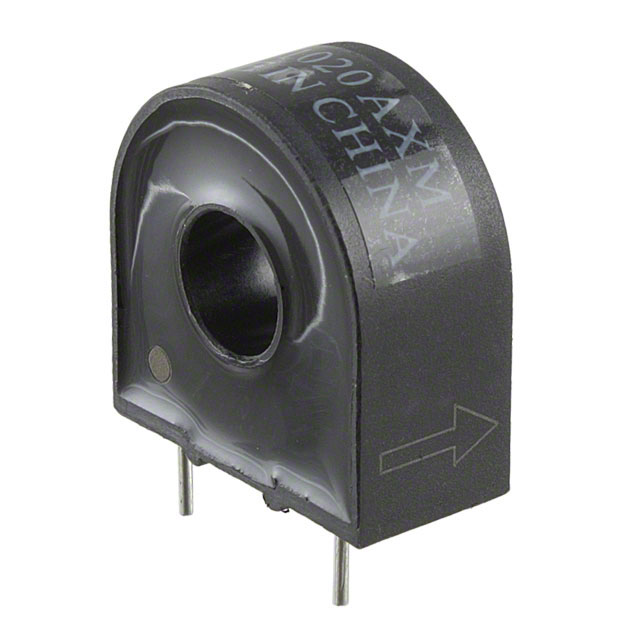

CST-1020

Triad Magnetics

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CST-1020
Manufacturer/Brand:	Triad Magnetics
Product description	CURR SENSE XFMR 20A T/H
Datasheets:	CST-1020.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14564 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 14564 pcs

Reference Price (In US Dollars)

1 pcs: $2.536

10 pcs: $1.927

25 pcs: $1.877

50 pcs: $1.725

100 pcs: $1.623

250 pcs: $1.573

500 pcs: $1.522

1000 pcs: $1.471

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.536

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CST-1020

Part Number	CST-1020	Manufacturer	Triad Magnetics
Description	CURR SENSE XFMR 20A T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14564 pcs	Data sheet	CST-1020.pdf
Weight	0.044 lb (19.96g)	Type	Non-Invasive (Solid Core)
Turns Ratio - Primary:Secondary	-	Termination Style	PC Pin
Size / Dimension	0.925" L x 0.472" W (23.50mm x 12.00mm)	Series	CST
Ratings	-	Packaging	Bulk
Other Names	237-1620	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.976" (24.80mm)	Frequency Range	50/60Hz
Energy Time (E.T.)	-	Detailed Description	20A Current Sense Transformer 50/60Hz 40 Ohm Through Hole
DC Resistance (DCR)	40 Ohm	Current Ratio	1000:1
Current Rating	20A
