F-257U

Triad Magnetics

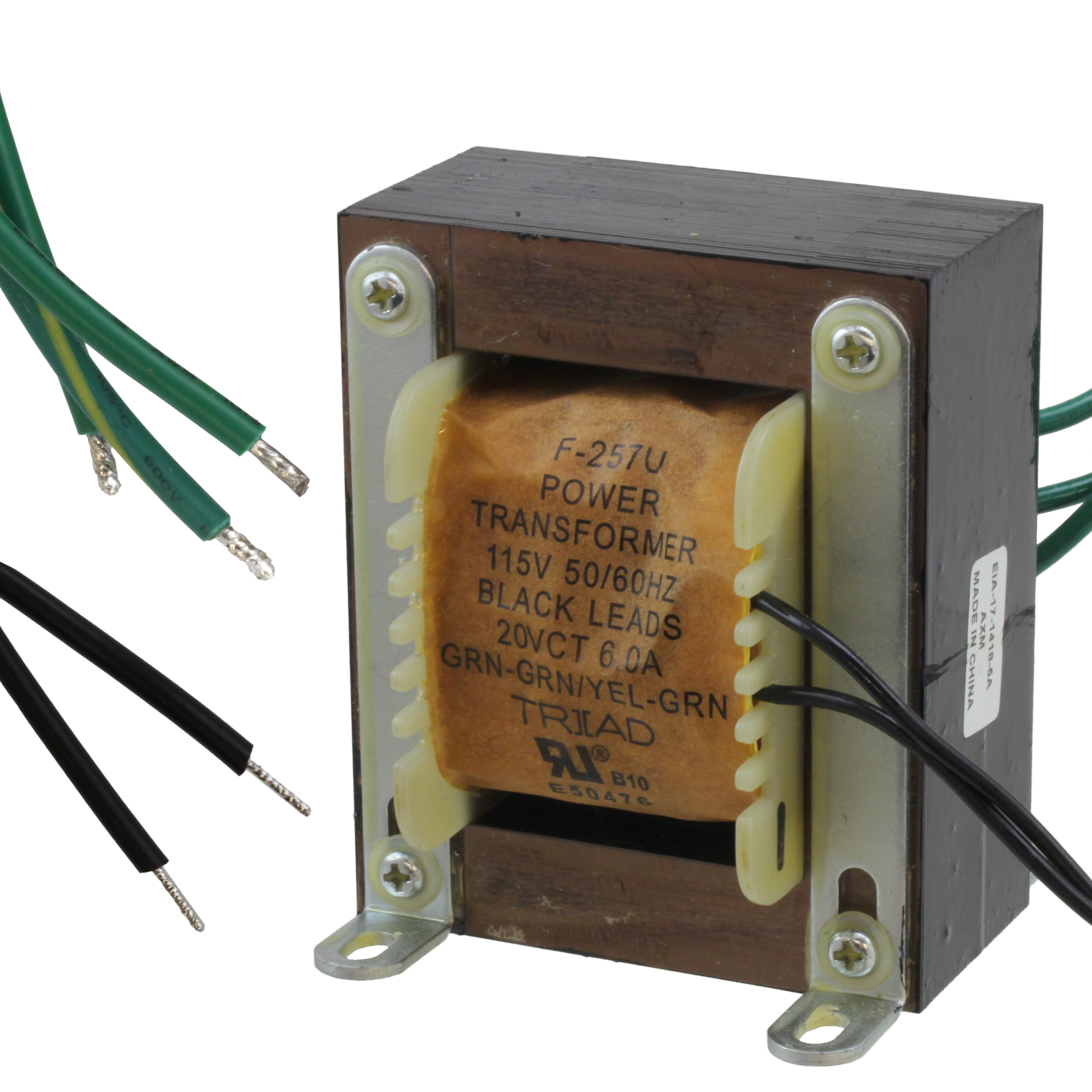

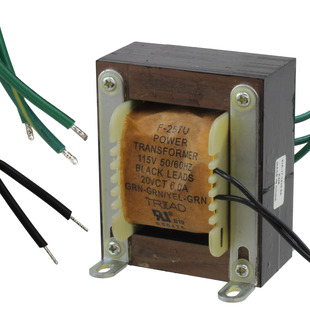

Image may be representation. See specifications for product details.

Product Overview

Part Number:	F-257U
Manufacturer/Brand:	Triad Magnetics
Product description	POWER XFMR CHASSIS MOUNT W/LEADS
Datasheets:	F-257U.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3470 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3470 pcs

Reference Price (In US Dollars)

1 pcs: $10.856

10 pcs: $9.578

25 pcs: $9.259

50 pcs: $8.301

100 pcs: $7.981

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$10.856

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of F-257U

Part Number	F-257U	Manufacturer	Triad Magnetics
Description	POWER XFMR CHASSIS MOUNT W/LEADS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3470 pcs	Data sheet	F-257U.pdf
Weight	5.7 lbs (2.6kg)	Voltage - Secondary (Full Load)	20V
Voltage - Primary	115V	Voltage - Isolation	1500Vrms
Type	Laminated Core	Termination Style	Wire Leads
Size / Dimension	85.73mm L x 85.73mm W	Series	Single Secondary
Secondary Winding(s)	Single	Primary Winding(s)	Single
Power - Max	120 VA	Other Names	237-1947
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	95.25mm
Current - Output (Max)	6A	Center Tap	Yes
