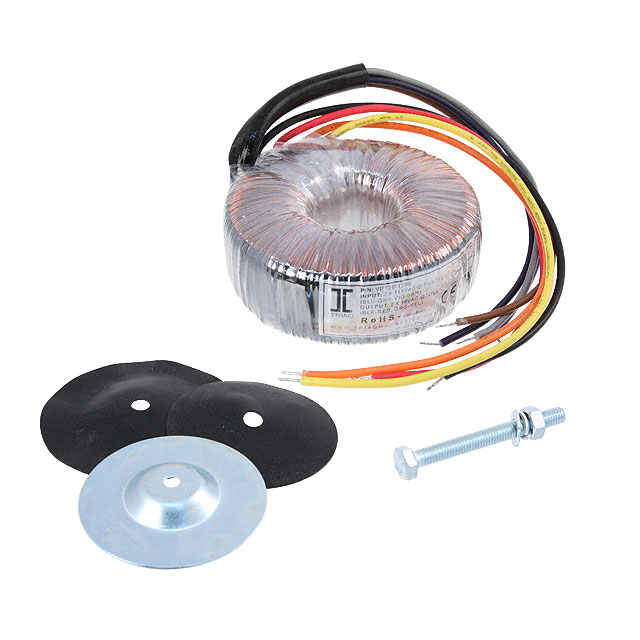

VPT36-1390

Triad Magnetics

Image may be representation. See specifications for product details.

Product Overview

Part Number:	VPT36-1390
Manufacturer/Brand:	Triad Magnetics
Product description	XFRMR TOROIDAL 50VA CHAS MOUNT
Datasheets:	VPT36-1390.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3850 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3850 pcs

Reference Price (In US Dollars)

1 pcs: $9.918

10 pcs: $8.753

25 pcs: $8.461

50 pcs: $7.586

100 pcs: $7.294

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$9.918

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of VPT36-1390

Part Number	VPT36-1390	Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 50VA CHAS MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3850 pcs	Data sheet	VPT36-1390.pdf
Weight	1.4 lbs (635g)	Voltage - Secondary (Full Load)	Parallel 18V, Series 36V
Voltage - Primary	115V, 230V	Voltage - Isolation	4000Vrms
Type	Toroidal	Termination Style	Wire Leads
Size / Dimension	80.00mm Dia x 33.00mm W	Series	Chassis Mount: World Series™
Secondary Winding(s)	Dual	Primary Winding(s)	Dual
Power - Max	50 VA	Other Names	237-1334 VPT361390
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	-
Current - Output (Max)	Parallel 2.78A, Series 1.39A	Center Tap	No
