Weidmuller
| Part Number | 1798710000 | Manufacturer | Weidmuller |
|---|---|---|---|

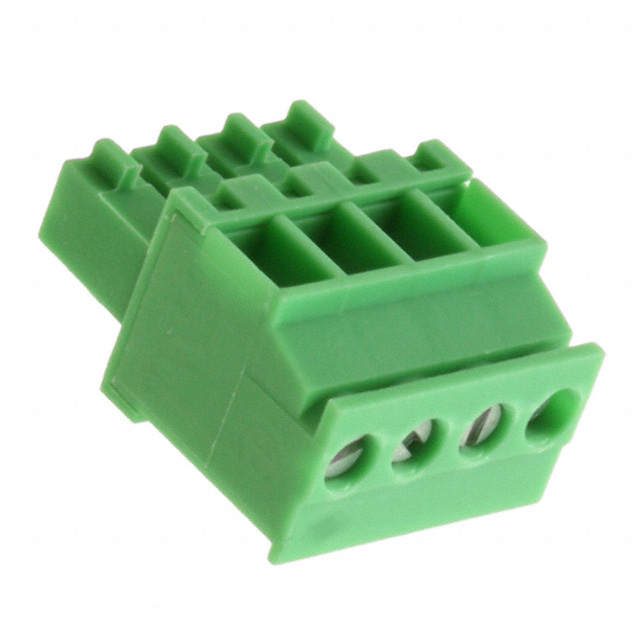

| Description | TERM BLOCK PLUG 4POS 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29210 pcs | Data sheet | 1798710000.pdf |
| Wire Strip Length | 7mm | Wire Gauge or Range - mm² | 0.2-1.5mm² |
| Wire Gauge or Range - AWG | 16-28 AWG | Voltage - UL | 300V |
| Voltage - IEC | 320V | Type | Plug, Female Sockets |
| Torque - Screw | 0.2-0.25 Nm (1.7-2.2 Lb-In) | Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Series | Omnimate BC | Screw Size | M2 |
| Positions Per Level | 4 | Plug Wire Entry | 90° |
| Pitch | 0.150" (3.81mm) | Packaging | Bulk |
| Other Names | 281-1968 BL3.81/4/90 |
Operating Temperature | -50°C ~ 120°C |
| Number of Positions | 4 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.411" (10.44mm) |
| Ingress Protection | IP20 | Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Header Orientation | - | Features | - |
| Detailed Description | 4 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 90° Free Hanging (In-Line) | Current - UL | 10A |
| Current - IEC | 17.5A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Green |
