0009484108

Affinity Medical Technologies - a Molex company

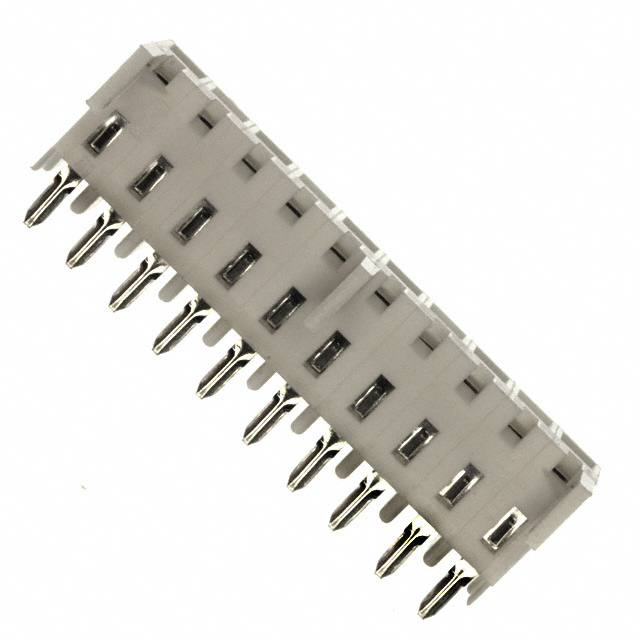

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0009484108
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RECEPT 10POS .156 VERT PCB
Datasheets:	0009484108.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	42431 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 42431 pcs

Reference Price (In US Dollars)

1 pcs: $0.903

10 pcs: $0.82

100 pcs: $0.703

616 pcs: $0.586

1232 pcs: $0.502

5544 pcs: $0.445

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.903

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0009484108

Part Number	0009484108	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RECEPT 10POS .156 VERT PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	42431 pcs	Data sheet	0009484108.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Board or Cable	Series	KK 41815
Row Spacing - Mating	-	Pitch - Mating	0.156" (3.96mm)
Packaging	Tray	Other Names	0009-48-4108 0009-48-4108-E 0009484108-E 09-48-4108 09-48-4108-E 09484108 09484108-E 9484108 A-41815-0066 WM13507
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyester
Insulation Height	0.449" (11.40mm)	Insulation Color	Natural
Ingress Protection	-	Features	Board Hooks
Fastening Type	Locking Ramp	Detailed Description	10 Position Receptacle Connector 0.156" (3.96mm) Through Hole Tin
Current Rating	5A	Contact Type	Female Socket
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	0.120" (3.05mm)	Contact Finish Thickness - Post	60.0µin (1.52µm)
Contact Finish Thickness - Mating	60.0µin (1.52µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Receptacle
Applications	Automotive, General Purpose, Medical, Telecommunications
