0009484129

Affinity Medical Technologies - a Molex company

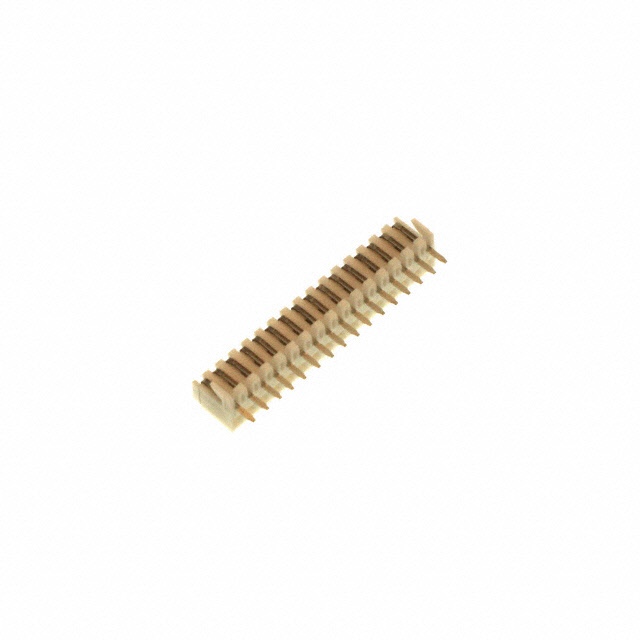

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0009484129
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RECEPT 12POS .156 VERT PCB
Datasheets:	0009484129.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	24880 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 24880 pcs

Reference Price (In US Dollars)

1 pcs: $1.321

10 pcs: $1.266

462 pcs: $0.924

924 pcs: $0.818

1386 pcs: $0.765

5082 pcs: $0.686

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.321

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0009484129

Part Number	0009484129	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RECEPT 12POS .156 VERT PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24880 pcs	Data sheet	0009484129.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Board or Cable	Series	KK 41815
Row Spacing - Mating	-	Pitch - Mating	0.156" (3.96mm)
Packaging	Tray	Other Names	0009-48-4129 0009-48-4129-E 0009484129-E 09-48-4129 09-48-4129-E 09484129 09484129-E 9484129 A-41815-0040 WM13409
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyester
Insulation Height	0.449" (11.40mm)	Insulation Color	Natural
Ingress Protection	-	Features	Board Hooks
Fastening Type	Locking Ramp	Detailed Description	12 Position Receptacle, Bottom Entry Connector 0.156" (3.96mm) Through Hole Tin
Current Rating	4.5A	Contact Type	Female Socket
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	0.125" (3.18mm)	Contact Finish Thickness - Post	60.0µin (1.52µm)
Contact Finish Thickness - Mating	60.0µin (1.52µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Receptacle, Bottom Entry
Applications	Automotive, General Purpose, Medical, Telecommunications
