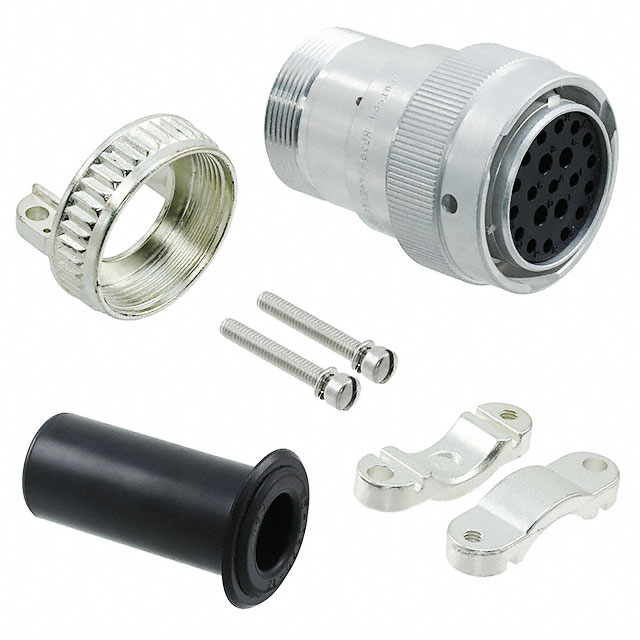

Part Number | HD36-24-21SE-059 | Manufacturer | Agastat Relays / TE Connectivity |
---|---|---|---|
Description | CONN PLUG HSG FMALE 21POS INLINE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 3492 pcs | Data sheet | 1.HD36-24-21SE-059.pdf2.HD36-24-21SE-059.pdf |
Type | For Female Sockets | Shielding | Unshielded |
Shell Size, MIL | - | Shell Size - Insert | 24-21 |
Shell Material | Aluminum | Shell Finish | - |
Series | HD30 | Packaging | Bulk |
Other Names | 1734-1489 HD36-24-21SE-059-ND |
Orientation | Keyed |
Operating Temperature | -55°C ~ 125°C | Number of Positions | 21 |
Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
Mounting Feature | - | Moisture Sensitivity Level (MSL) | Not Applicable |
Material Flammability Rating | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insert Material | Polyetherimide (PEI) | Ingress Protection | IP67 - Dust Tight, Waterproof |
Includes | - | Housing Color | Silver |
Features | Backshell, Cable Clamp | Fastening Type | Bayonet Lock |
Detailed Description | 21 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp | Coupling Nut Material, Plating | Aluminum |
Coupling Nut Diameter | 1.942" (49.32mm) | Contact Type | Crimp |
Contact Size | 12 (4), 16 (17) | Contact Shape | Circular |
Connector Type | Plug Housing |
