PT2S7RC4

Agastat Relays / TE Connectivity

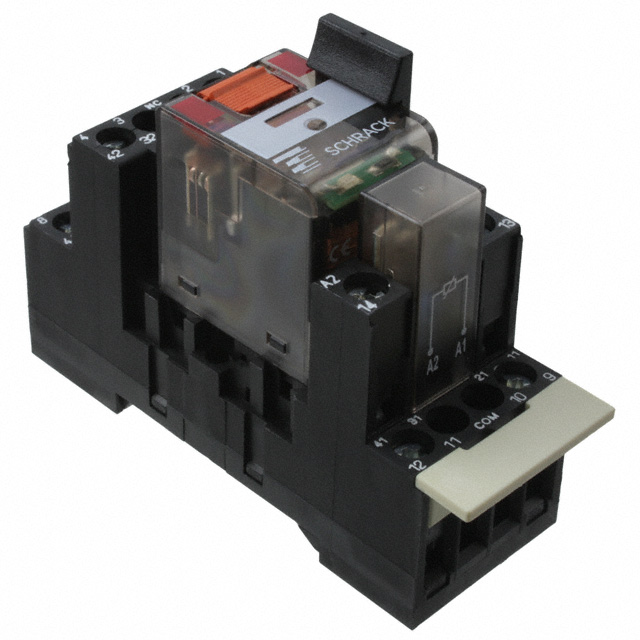

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PT2S7RC4
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	RELAY GEN PURPOSE DPDT 12A 24V
Datasheets:	PT2S7RC4.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3012 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 3012 pcs

Reference Price (In US Dollars)

5 pcs: $9.855

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$9.855

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PT2S7RC4

Part Number	PT2S7RC4	Manufacturer	Agastat Relays / TE Connectivity
Description	RELAY GEN PURPOSE DPDT 12A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3012 pcs	Data sheet	PT2S7RC4.pdf
Turn On Voltage (Max)	19.2 VAC	Turn Off Voltage (Min)	7.2 VAC
Termination Style	Screw Terminal	Switching Voltage	400VAC - Max
Series	PT, SCHRACK	Relay Type	General Purpose with Socket
Packaging	Bulk	Other Names	5-1415074-1 5-1415074-1-ND 514150741 PB1505 PT2S7RC4-ND
Operating Temperature	-40°C ~ 70°C	Mounting Type	DIN Rail
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	LED Indicator, Mechanical Indicator, Test Button	Detailed Description	General Purpose with Socket Relay DPDT (2 Form C) 24VAC Coil DIN Rail
Contact Rating (Current)	12A	Contact Material	Silver Nickel (AgNi)
Contact Form	DPDT (2 Form C)	Coil Voltage	24VAC
Coil Type	Non Latching	Coil Resistance	192 Ohms
Coil Power	1 VA
