NKK Switches

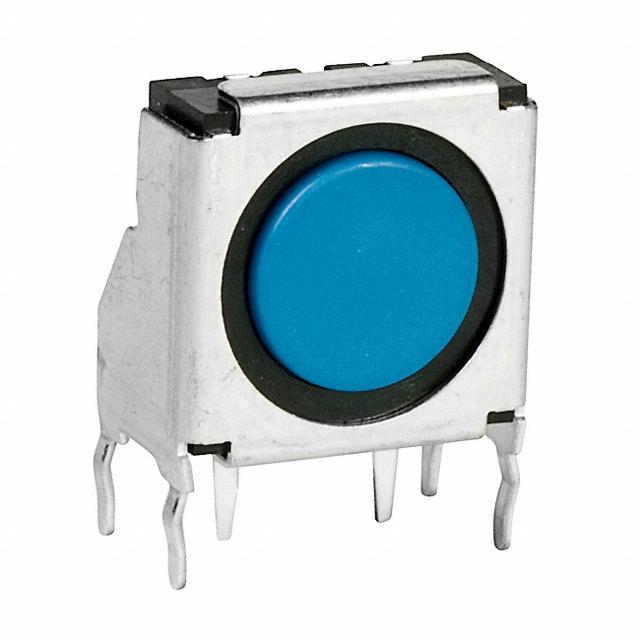

| Part Number | JB15FH | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38668 pcs | Data sheet | JB15FH.pdf |
| Termination Style | PC Pin | Switch Travel | 0.25mm |
| Switch Function | Off-Mom | Series | JB |
| Packaging | Bulk | Outline | 10.80mm x 10.80mm |
| Other Names | 360-3260 JB15FH-ND JB15FH-RO JB15FH-RO-ND |
Operating Temperature | -25°C ~ 70°C |
| Operating Force | 176gf | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 5,000,000 Cycles |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | Process Sealed |
| Detailed Description | Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle | Contact Rating @ Voltage | 0.05A @ 24VDC |
| Circuit | SPST-NO | Actuator Type | Round Button |
| Actuator Orientation | Side Actuated | Actuator Material | Polybutylene Terephthalate (PBT) |
| Actuator Length, Right Angle | 1.46mm | Actuator Height off PCB, Vertical | - |
