S9AW

NKK Switches

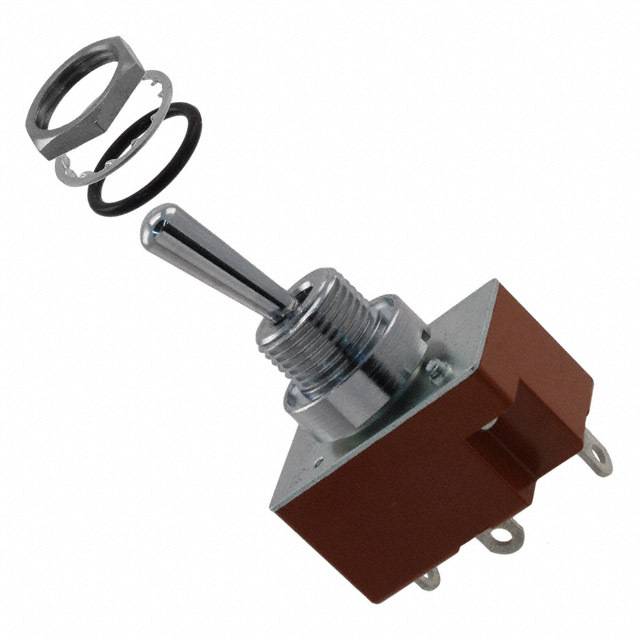

Image may be representation. See specifications for product details.

Product Overview

Part Number:	S9AW
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TOGGLE SPDT 15A 125V
Datasheets:	S9AW.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9958 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 9958 pcs

Reference Price (In US Dollars)

1 pcs: $3.424

10 pcs: $3.333

25 pcs: $3.243

50 pcs: $3.063

100 pcs: $2.973

250 pcs: $2.883

500 pcs: $2.432

1000 pcs: $2.342

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$3.424

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of S9AW

Part Number	S9AW	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9958 pcs	Data sheet	S9AW.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-Off-Mom
Series	S	Panel Cutout Dimensions	Circular - 12.50mm Dia
Packaging	Bulk	Other Names	360-1742 360-1742-ND 360-1934 S9AW-RO
Operating Temperature	-30°C ~ 70°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	-	Electrical Life	25,000 Cycles
Detailed Description	Toggle Switch SPDT Panel Mount	Current Rating	15A (AC), 20A (DC)
Circuit	SPDT	Bushing Thread	M12 x 1
Actuator Type	Standard Round	Actuator Material	Brass, Chrome Plated
Actuator Length	17.50mm
