S9AWF

NKK Switches

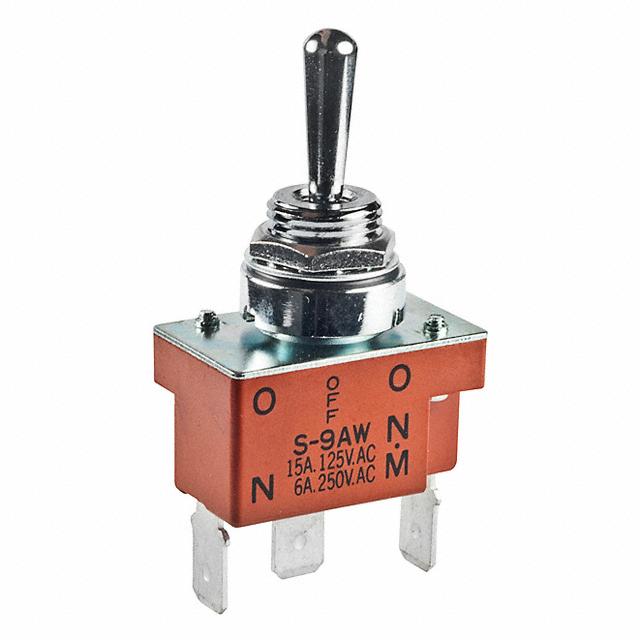

Image may be representation. See specifications for product details.

Product Overview

Part Number:	S9AWF
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TOGGLE SPDT 15A 125V
Datasheets:	S9AWF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9418 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 9418 pcs

Reference Price (In US Dollars)

1 pcs: $3.625

10 pcs: $3.528

25 pcs: $3.433

50 pcs: $3.242

100 pcs: $3.147

250 pcs: $3.051

500 pcs: $2.575

1000 pcs: $2.479

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.625

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of S9AWF

Part Number	S9AWF	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9418 pcs	Data sheet	S9AWF.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-Off-Mom
Series	S	Panel Cutout Dimensions	Circular - 12.50mm Dia
Packaging	Bulk	Other Names	S9AWF-RO S9AWF-RO-ND
Operating Temperature	-30°C ~ 70°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	-	Electrical Life	25,000 Cycles
Detailed Description	Toggle Switch SPDT Panel Mount	Current Rating	15A (AC), 20A (DC)
Circuit	SPDT	Bushing Thread	M12 x 1
Actuator Type	Standard Round	Actuator Material	Brass, Chrome Plated
Actuator Length	17.50mm
