G8NW-2H-DC12

Omron

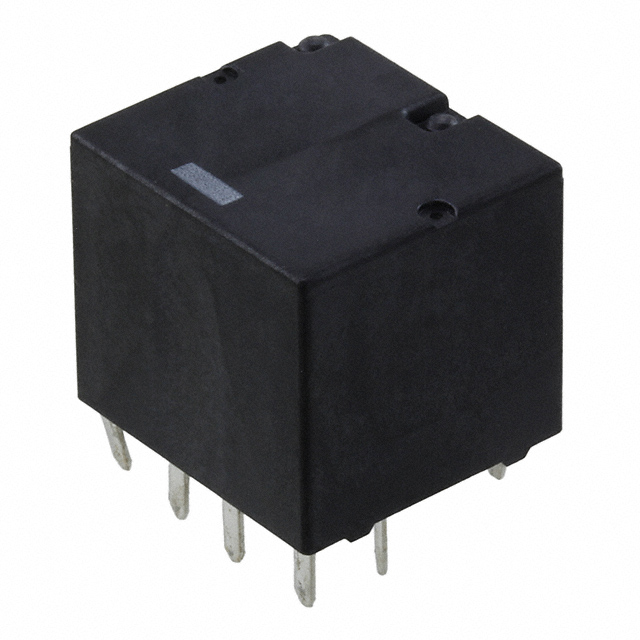

Image may be representation. See specifications for product details.

Product Overview

Part Number:	G8NW-2H-DC12
Manufacturer/Brand:	Omron
Product description	RELAY AUTOMOTIVE SPDT 30A 12V
Datasheets:	G8NW-2H-DC12.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	22013 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 22013 pcs

Reference Price (In US Dollars)

1 pcs: $1.454

10 pcs: $1.362

25 pcs: $1.211

50 pcs: $1.15

100 pcs: $1.09

250 pcs: $0.969

500 pcs: $0.908

1080 pcs: $0.848

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.454

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of G8NW-2H-DC12

Part Number	G8NW-2H-DC12	Manufacturer	Omron
Description	RELAY AUTOMOTIVE SPDT 30A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22013 pcs	Data sheet	G8NW-2H-DC12.pdf
Turn On Voltage (Max)	6.5 VDC	Turn Off Voltage (Min)	1 VDC
Termination Style	PC Pin	Switching Voltage	16VDC - Max
Series	G8NW-2	Release Time	10ms
Packaging	Tray	Other Names	G8NW-2H-AS SK G8NW2HASSK G8NW2HDC12 Z6525
Operating Temperature	-40°C ~ 105°C	Operate Time	10ms
Mounting Type	Through Hole	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Contact Rating (Current)	30A
Contact Material	Silver Tin Oxide (AgSnO)	Contact Form	SPDT (1 Form C) x 2
Coil Voltage	12VDC	Coil Type	Non Latching
Coil Resistance	180 Ohms	Coil Power	800 mW
Coil Current	66.7mA
