VPT48-2080

Triad Magnetics

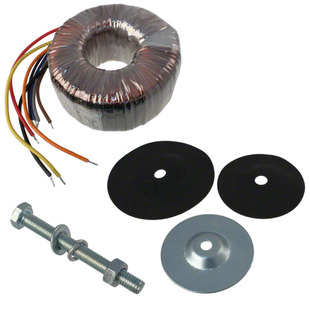

Image may be representation. See specifications for product details.

Product Overview

Part Number:	VPT48-2080
Manufacturer/Brand:	Triad Magnetics
Product description	XFRMR TOROIDAL 100VA CHAS MOUNT
Datasheets:	VPT48-2080.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2353 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2353 pcs

Reference Price (In US Dollars)

1 pcs: $13.905

10 pcs: $12.27

25 pcs: $11.861

50 pcs: $10.634

100 pcs: $10.225

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$13.905

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of VPT48-2080

Part Number	VPT48-2080	Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 100VA CHAS MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2353 pcs	Data sheet	VPT48-2080.pdf
Weight	2.2 lbs (997.9g)	Voltage - Secondary (Full Load)	Parallel 24V, Series 48V
Voltage - Primary	115V, 230V	Voltage - Isolation	4000Vrms
Type	Toroidal	Termination Style	Wire Leads
Size / Dimension	87.00mm Dia x 47.00mm W	Series	Chassis Mount: World Series™
Secondary Winding(s)	Dual	Primary Winding(s)	Dual
Power - Max	100 VA	Other Names	237-1342 VPT482080
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	-
Current - Output (Max)	Parallel 4.16A, Series 2.08A	Center Tap	No
